3x8 Hydraulic Cylinder - 3 Bore 8 Stroke Double Acting Welded Threaded Clevis Hydraulic Cylinder 3500 PSI

Bore 3" (OD 3.38"), Stroke8" Rod:1.5, Retracted: 18.25" , Extended: 26.25" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 21200Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

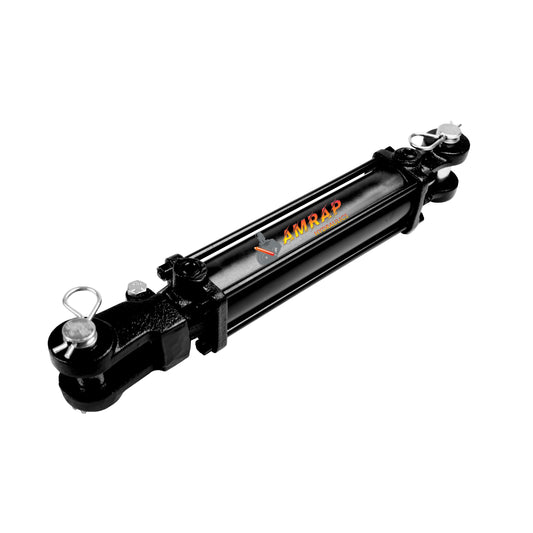

3x8A Hydraulic Cylinder - 3 Bore 8 ASAE Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 3" (OD 3.38"), Stroke 8 ASAE" Rod:1.25, Retracted: 20.25" , Extended: 28.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with 1/2" NPT (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 21200Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored...

4x10 Hydraulic Cylinder - 4 Bore 10 Stroke Double Acting Pin Eye Hydraulic Cylinder 3500 PSI

Bore 4" (OD 2.38"), Stroke10" Rod:2, Retracted: 19" , Extended: 27" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

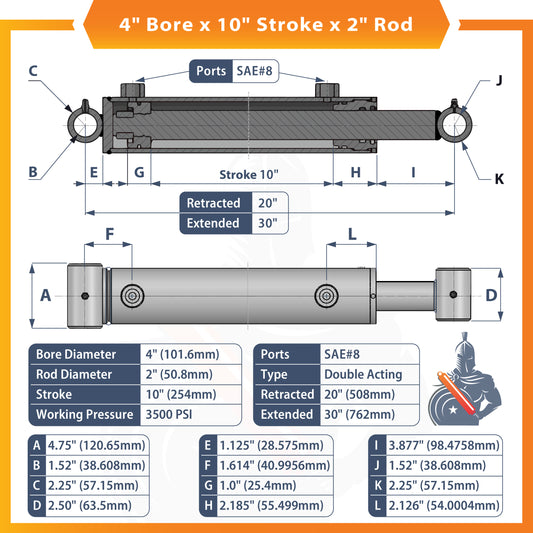

4x10 Hydraulic Cylinder - 4 Bore 10 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 4" (OD 4.38"), Stroke10" Rod:2, Retracted: 20" , Extended: 30" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x10 Hydraulic Cylinder - 4 Bore 10 Stroke Double Acting Welded Clevis Hydraulic Cylinder 3000 PSI

Bore 4" (OD 4.38"), Stroke10" Rod:1.75, Retracted: 20.25" , Extended: 30.25" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x10 Hydraulic Cylinder - 4 Bore 10 Stroke Double Acting Welded Threaded Clevis Hydraulic Cylinder 3500 PSI

Bore 4" (OD 4.38"), Stroke 10", Rod: 1.75", Retracted: 20.25", Extended: 30.25", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 37690 Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

4x12 Hydraulic Cylinder - 4 Bore 12 Stroke Double Acting Pin Eye Hydraulic Cylinder 3500 PSI

Bore 4" (OD 2.38"), Stroke12" Rod:2, Retracted: 21" , Extended: 29" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x12 Hydraulic Cylinder - 4 Bore 12 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

4x12 Hydraulic Cylinder - 4 Bore 12 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 4" (OD 4.38"), Stroke12" Rod:2, Retracted: 22" , Extended: 34" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x12 Hydraulic Cylinder - 4 Bore 12 Stroke Double Acting Welded Clevis Hydraulic Cylinder 3000 PSI

Bore 4" (OD 4.38"), Stroke12" Rod:1.75, Retracted: 22.25" , Extended: 34.25" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x12 Hydraulic Cylinder - 4 Bore 12 Stroke Double Acting Welded Threaded Clevis Hydraulic Cylinder 3500 PSI

Bore 4" (OD 4.38"), Stroke 12", Rod: 1.75", Retracted: 22.25", Extended: 34.25", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 37690 Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

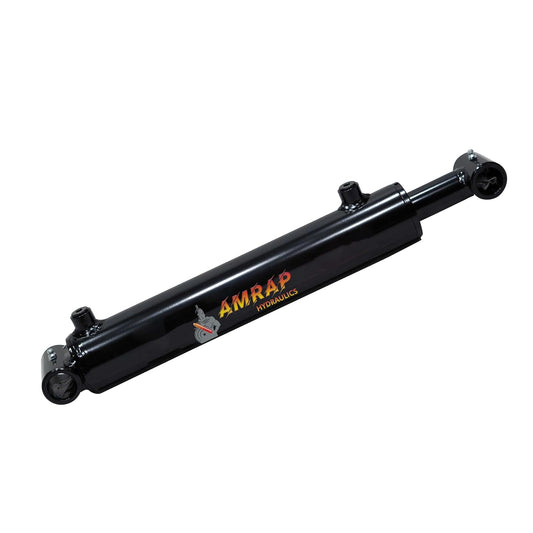

4x14 Hydraulic Cylinder - 4 Bore 14 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 4" (OD 4.38"), Stroke14" Rod:2, Retracted: 24" , Extended: 38" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x14 Hydraulic Cylinder - 4 Bore 14 Stroke Double Acting Welded Clevis Hydraulic Cylinder 3000 PSI

Bore 4" (OD 4.38"), Stroke14" Rod:1.75, Retracted: 24.25" , Extended: 38.25" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

4x14 Hydraulic Cylinder - 4 Bore 14 Stroke Double Acting Welded Threaded Clevis Hydraulic Cylinder 3500 PSI

Bore 4" (OD 4.38"), Stroke 14", Rod: 1.75", Retracted: 24.25", Extended: 38.25", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3000 PSI, Column Load Capacity of 37690 Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

4x16 Hydraulic Cylinder - 4 Bore 16 Stroke Double Acting Pin Eye Hydraulic Cylinder 3500 PSI

Bore 4" (OD 2.38"), Stroke16" Rod:2, Retracted: 25" , Extended: 33" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37690Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...
