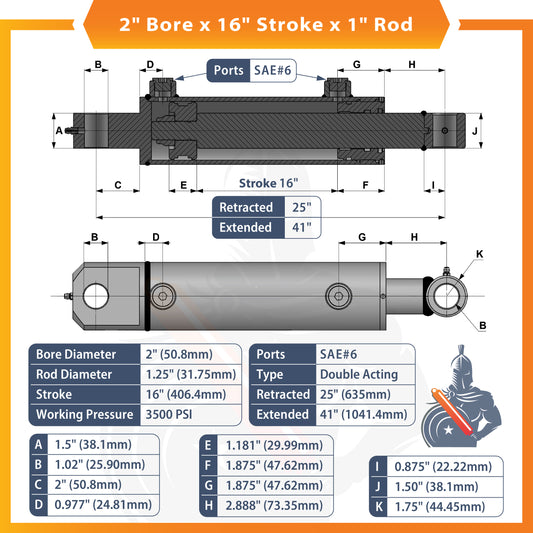

2x16 Hydraulic Cylinder - Double Acting Welded Tang Universal Hydraulic Cylinder 2" Bore , 16" Stroke , SAE#6 - 3500 Psi

Bore:2" (OD 2.38").,  Stroke:16",  Rod:1 1/4",  Retracted:25",  Extended:41",  Pin holes:1" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of  9200 LBs, Tang Universal Hydraulic Cylinder Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. The tangs are...

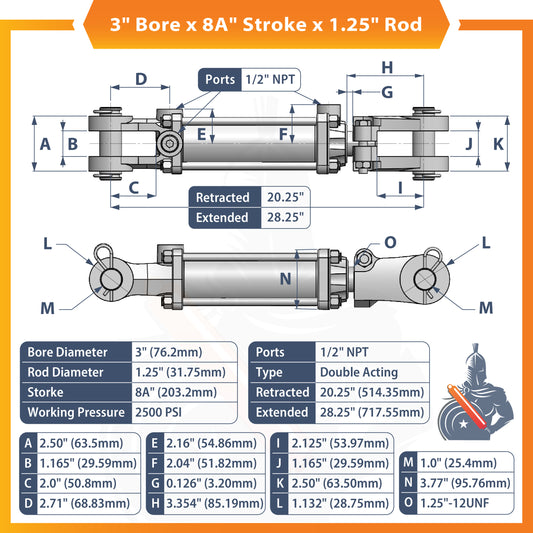

3x8A Hydraulic Cylinder - 3 Bore 8 ASAE Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 3" (OD 3.38"), Stroke 8 ASAE" Rod:1.25, Retracted: 20.25" , Extended: 28.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with 1/2" NPT (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 21200Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored...

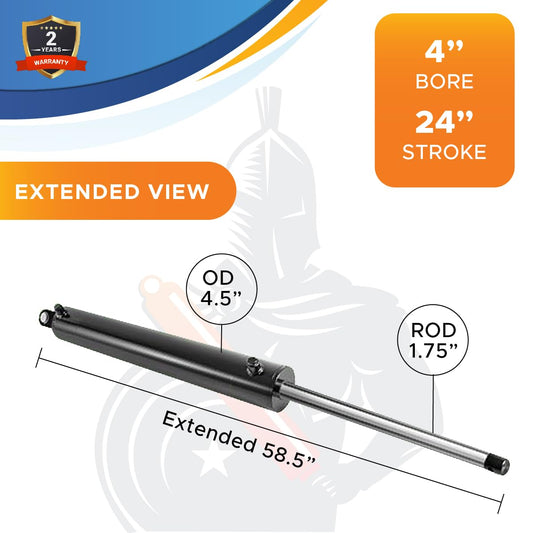

4x24 Hydraulic Log Splitter Cylinder – 4" Bore x 24" Stroke x 1.75" Rod, Welded Double Acting Cylinder for Wood Splitter, 3500 PSI, 1/2" NPT Ports – Heavy-Duty, Universal Fit for All Major Brands

Bore: 4" (OD 4.5"), Stroke: 24 inches, Rod: 1.75", Retracted: 34.5", Extended: 58.5", Pin holes: 1-1/8", 9/16" Welded Double Acting Log Splitter Hydraulic Cylinder with 1/2" NPT Ports, Rated Pressure: 3500 PSI, Column Load Capacity: 36,000 lbs. Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Extremely...

3x22 Hydraulic Cylinder - 3 Bore 22 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3" (OD 3.38"), Stroke 22-inch, Rod 1 1/2", Retracted 30", Extended 52", Pin holes 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 19,250 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

3x18 Hydraulic Cylinder - 3 Bore 18 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3" (OD 3.38"), Stroke18" Rod:1.5, Retracted: 26" , Extended: 44" , Pin holes: 1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 21200 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and...

3x16 Hydraulic Cylinder - 3 Bore 16 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:3" (OD 3.38"). , Stroke:16", Rod:1.5", Retracted:24", Extended:40", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 21200 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and...

2x22 Hydraulic Cylinder - 2 Bore 22 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 22 inches, Rod: 1 1/4", Retracted: 30", Extended: 52", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 8370 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2x30 Hydraulic Cylinder - 2 Bore 30 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 30 inches, Rod: 1 1/4", Retracted: 38", Extended: 68", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 5690 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2x26 Hydraulic Cylinder - 2 Bore 26 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:2" (OD 2.38")., Stroke:26", Rod:1.25", Retracted:34", Extended:60", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 7500 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal...

2x36 Hydraulic Cylinder - 2 Bore 36 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 36 inches, Rod: 1 1/4", Retracted: 44", Extended: 80", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 4120 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2x28 Hydraulic Cylinder - 2 Bore 28 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:2" (OD 2.38")., Stroke:28", Rod:1.25", Retracted:36", Extended:64", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 6500 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal...

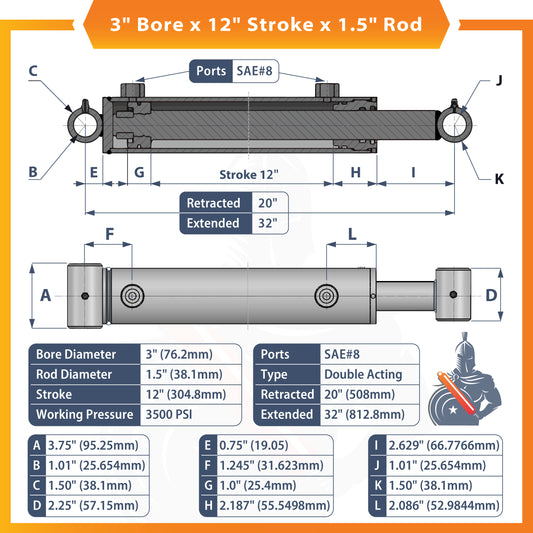

3x12 Hydraulic Cylinder - 3 Bore 12 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3" (OD 3.38"), Stroke 12-inch, Rod 1 1/2", Retracted 20", Extended 32", Pin holes 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 21200 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

2x18 Hydraulic Cylinder - 2 Bore 18 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 18 inches, Rod: 1.25", Retracted: 26", Extended: 44", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 9000 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

2x24 Hydraulic Cylinder - 2 Bore 24 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 24 inches, Rod: 1 1/4", Retracted: 32", Extended: 56", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 8370 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

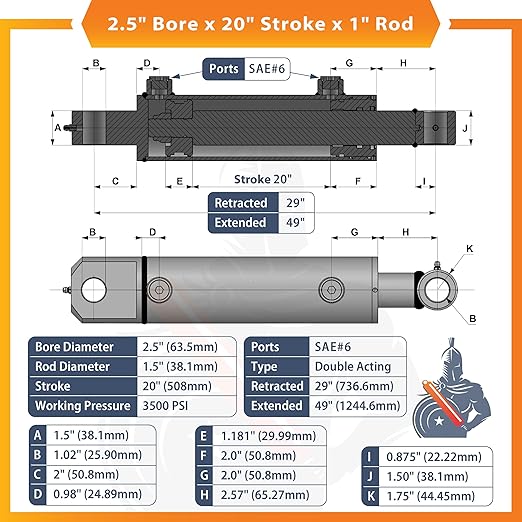

2.5x20 Hydraulic Cylinder -2.5" Bore, 20" Stroke Double Acting Hydraulic Cylinder Welded Tang Universal Cylinder SAE#8-3500 PSI

Bore:2.5" (OD 2.88"). , Stroke:20", Rod:1 1/2", Retracted:29", Extended:49", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 16220 LBs, Tang Universal Hydraulic Cylinder Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. The tangs...
