2x8 Hydraulic Cylinder - 2 Bore 8 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke8" Rod:1.25, Retracted: 17" , Extended: 25" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 11300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

1.5x22 Hydraulic Cylinder - 1.5 Bore 22 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke22" Rod:1, Retracted: 31" , Extended: 53" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 4200Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

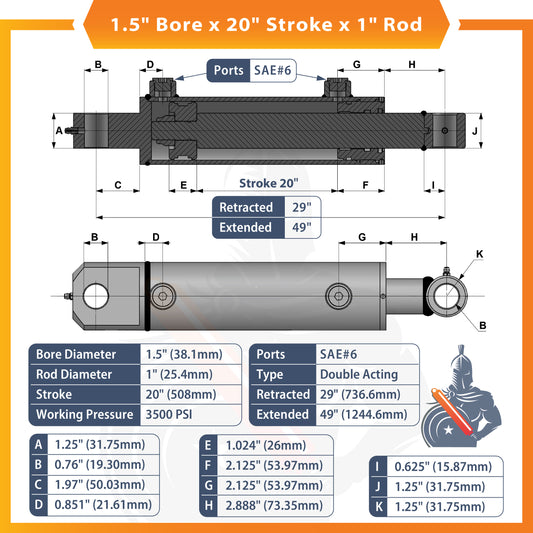

1.5x20 Hydraulic Cylinder - 1.5 Bore 20 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke20" Rod:1, Retracted: 29" , Extended: 49" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 4800Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

1.5x16 Hydraulic Cylinder - 1.5 Bore 16 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke16" Rod:1, Retracted: 25" , Extended: 41" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 5300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

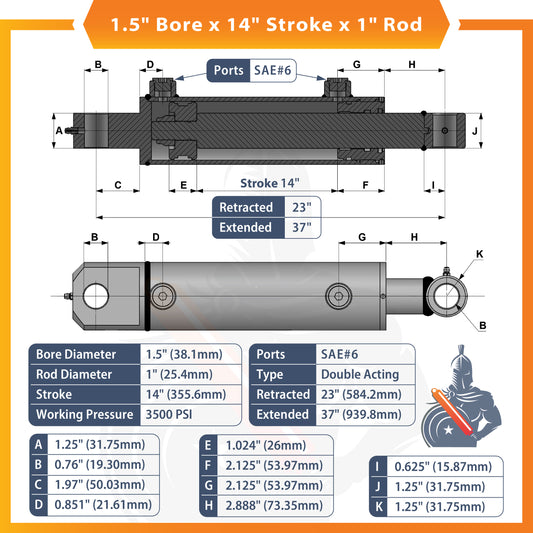

1.5x14 Hydraulic Cylinder - 1.5 Bore 14 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke14" Rod:1, Retracted: 23" , Extended: 37" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 5300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

1.5x10 Hydraulic Cylinder - 1.5 Bore 10 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke10" Rod:1, Retracted: 19" , Extended: 29" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 5300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

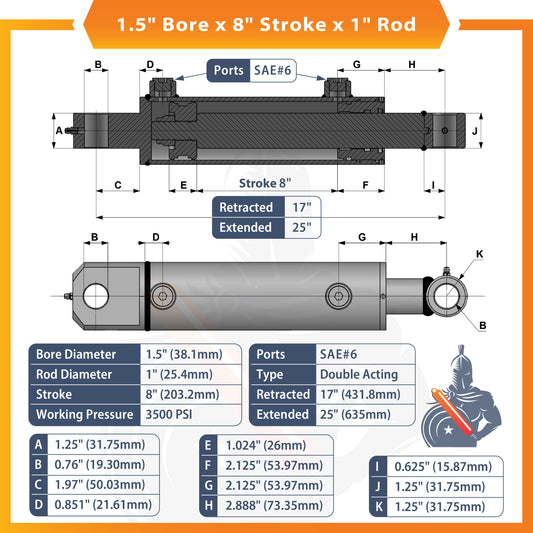

1.5x8 Hydraulic Cylinder - 1.5 Bore 8 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke8" Rod:1, Retracted: 17" , Extended: 25" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 5300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

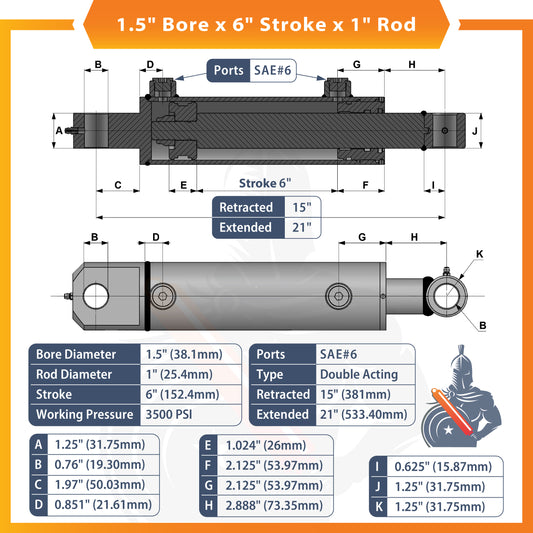

1.5x6 Hydraulic Cylinder - 1.5 Bore 6 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke6" Rod:1, Retracted: 15" , Extended: 21" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 5300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2x16 Hydraulic Cylinder - Double Acting Welded Tang Universal Hydraulic Cylinder 2" Bore , 16" Stroke , SAE#6 - 3500 Psi

Bore:2" (OD 2.38").,  Stroke:16",  Rod:1 1/4",  Retracted:25",  Extended:41",  Pin holes:1" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of  9200 LBs, Tang Universal Hydraulic Cylinder Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. The tangs are...

2.5x6 Hydraulic Cylinder - 2.5 Bore 6 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2.5" (OD 2.88"), Stroke 6" Rod:1.125, Retracted: 16.25" , Extended: 22.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 12270Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their...

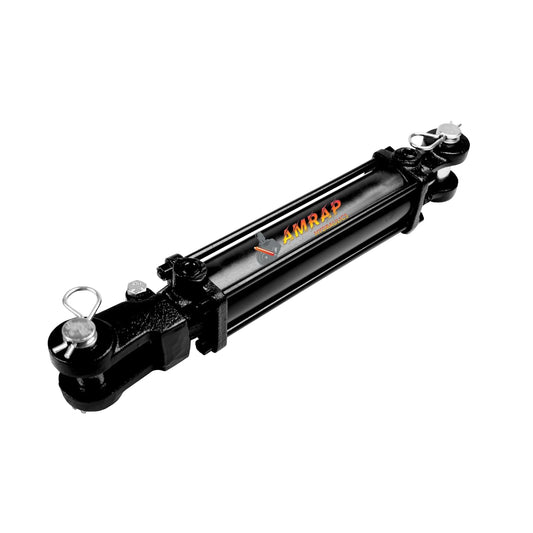

2.5x8 Hydraulic Cylinder - 2.5 Bore 8 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2.5" (OD 2.88"), Stroke 8" Rod:1.125, Retracted: 18.25" , Extended: 26.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 12270Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their...

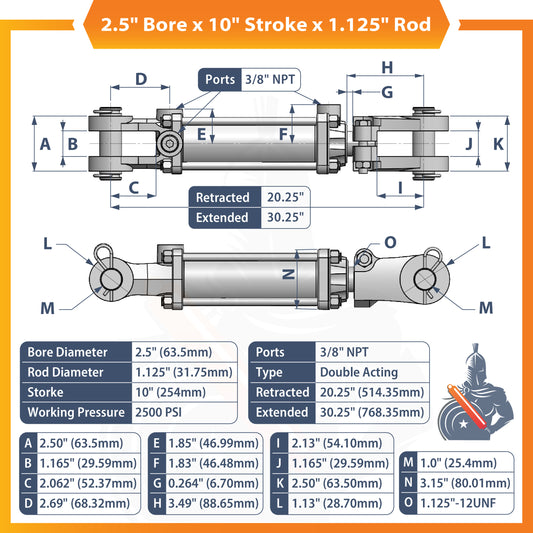

2.5x10 Hydraulic Cylinder - 2.5 Bore 10 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2.5" (OD 2.88"), Stroke 10" Rod:1.125, Retracted: 20.25" , Extended: 30.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 12270Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their...

3x12 Hydraulic Cylinder - 3 Bore 12 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 3" (OD 3.38"), Stroke 8 ASAE" Rod:1.25, Retracted: 20.25" , Extended: 28.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with 1/2" NPT (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 21200Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored...

3x8A Hydraulic Cylinder - 3 Bore 8 ASAE Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 3" (OD 3.38"), Stroke 8 ASAE" Rod:1.25, Retracted: 20.25" , Extended: 28.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with 1/2" NPT (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 21200Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored...

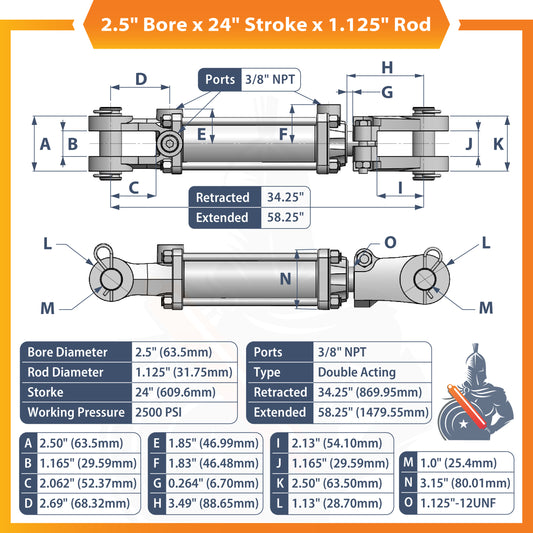

2.5x24 Hydraulic Cylinder - 2.5 Bore 24 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2.5" (OD 2.88"), Stroke24"  Rod:1.125, Retracted: 34.25" , Extended: 58.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of5300Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility,...
