2.5x20 Hydraulic Cylinder - 2.5 Bore 20 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:2.5" (OD 2.88"). , Stroke:20", Rod:1.5", Retracted:28", Extended:48", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 14720 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and...

2.5x20 Hydraulic Cylinder -2.5" Bore, 20" Stroke Double Acting Hydraulic Cylinder Welded Tang Universal Cylinder SAE#8-3500 PSI

Bore:2.5" (OD 2.88"). , Stroke:20", Rod:1 1/2", Retracted:29", Extended:49", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 16220 LBs, Tang Universal Hydraulic Cylinder Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. The tangs...

2.5x22 Hydraulic Cylinder - 2.5 Bore 22 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2.5" (OD 2.88"), Stroke: 22 inches, Rod: 1 1/2", Retracted: 30", Extended: 52", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 14720 l lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust...

2.5x24 Hydraulic Cylinder - 2.5 Bore 24 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:2.5" (OD 2.88"). , Stroke:24", Rod:1.5", Retracted:32", Extended:56", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 14720 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and...

2.5x30 Hydraulic Cylinder - 2.5 Bore 30 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2.5" (OD 2.88"), Stroke: 30 inches, Rod: 1 1/2", Retracted: 38", Extended: 68", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 11710 l lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust...

2.5x32 Hydraulic Cylinder - 2.5 Bore 32 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 2.5" (OD 2.88"), Stroke 32", Rod 1.5", Retracted 40", Extended 72", Pin holes 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 10,450 Lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2.5x4 Hydraulic Cylinder - 2.5 Bore 4 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2.5" (OD 2.88"), Stroke: 4 inches, Rod: 1 1/2", Retracted: 12", Extended: 16", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 14720 l lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust...

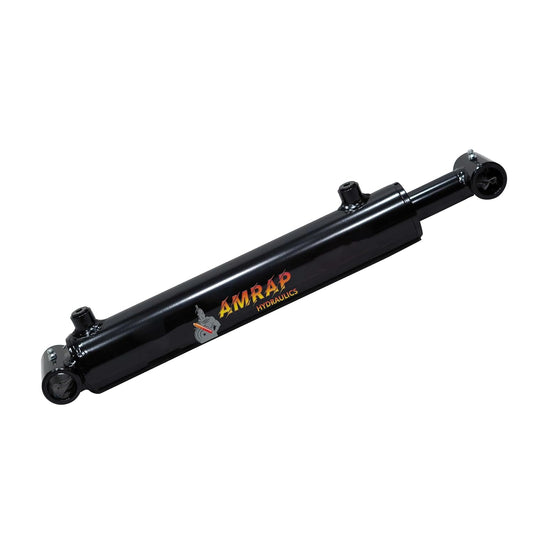

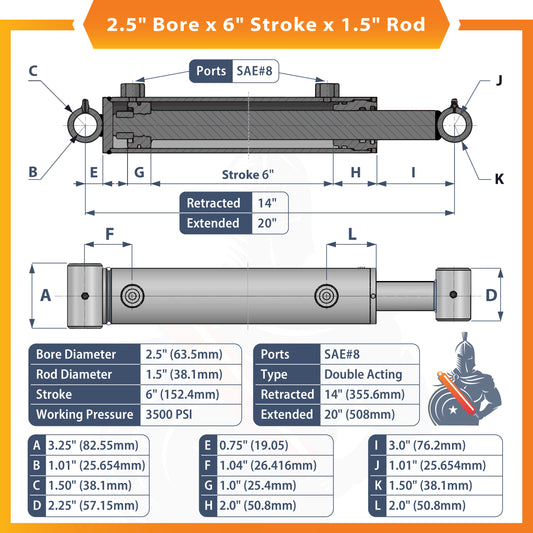

2.5x6 Hydraulic Cylinder - 2.5 Bore 6 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2.5" (OD 2.88"), Stroke: 6 inches, Rod: 1 1/2", Retracted: 14", Extended: 20", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 14720 l lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust...

2.5x8 Hydraulic Cylinder - 2.5 Bore 8 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2.5" (OD 2.88"), Stroke: 8 inches, Rod: 1 1/2", Retracted: 16", Extended: 24", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 14720 lbs. Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2x10 Hydraulic Cylinder - 2 Bore 10 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 10 inches, Rod: 1 1/4", Retracted: 18", Extended: 28", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 9420 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2x10 Hydraulic Cylinder - 2 Bore 10 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2" (OD 2.38"), Stroke 10" Rod:1.125, Retracted: 20.25" , Extended: 30.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 7850Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their...

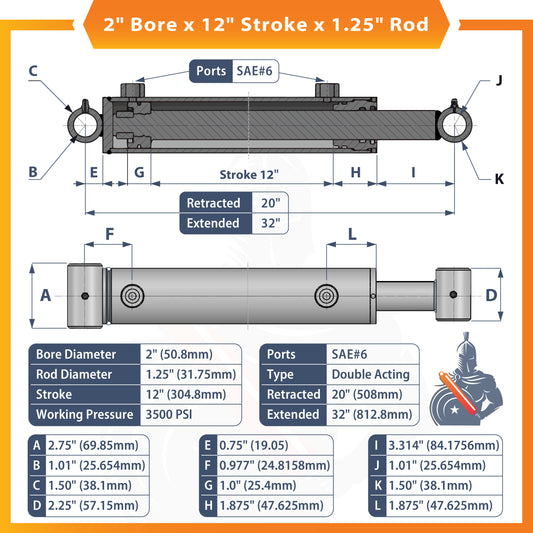

2x12 Hydraulic Cylinder - 2 Bore 12 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:2" (OD 2.38")., Stroke:12", Rod:1.25", Retracted:20", Extended:32", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 9420 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal...

2x12 Hydraulic Cylinder - 2 Bore 12 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2" (OD 2.38"), Stroke 12" Rod:1.125, Retracted: 22.25" , Extended: 34.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 7850Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their...

2x14 Hydraulic Cylinder - 2 Bore 14 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore: 2" (OD 2.38"), Stroke: 14 inches, Rod: 1 1/4", Retracted: 22", Extended: 36", Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE 6 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 9420 lbs. Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles....

2x16 Hydraulic Cylinder - 2 Bore 16 Stroke Double Acting Tie Rod Hydraulic Cylinder - SAE #8 Port

Bore 2" (OD 2.38"), Stroke 16" Rod:1.125, Retracted: 26.25" , Extended: 42.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with SAE #8 Ports (Female Pipe), Rated Pressure of 3000 PSI, Column Load Capacity of 9420Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored...
