2.5x16 Hydraulic Cylinder - 2.5 Bore 16 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 2.5" (OD 2.88"), Stroke16" Rod:1.5, Retracted: 25" , Extended: 41" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 17670Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

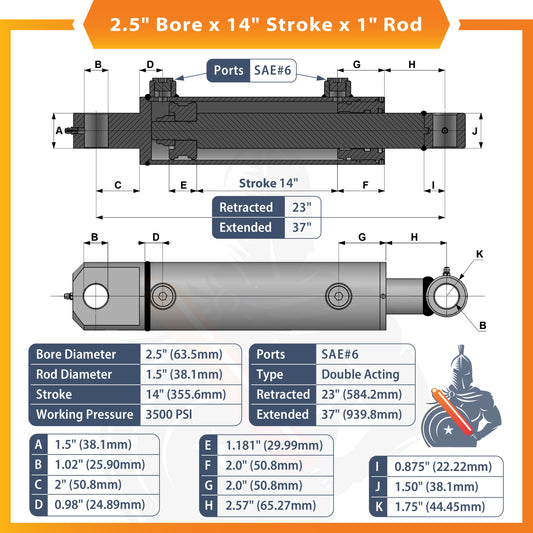

2.5x14 Hydraulic Cylinder - 2.5 Bore 14 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 2.5" (OD 2.88"), Stroke14" Rod:1.5, Retracted: 23" , Extended: 37" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 17670Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2.5x10 Hydraulic Cylinder - 2.5 Bore 10 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 2.5" (OD 2.88"), Stroke10" Rod:1.5, Retracted: 19" , Extended: 29" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 17670Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2.5x6 Hydraulic Cylinder - 2.5 Bore 6 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 2.5" (OD 2.88"), Stroke6" Rod:1.5, Retracted: 15" , Extended: 21" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 17670Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2x24 Hydraulic Cylinder - 2 Bore 24 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke24" Rod:1.25, Retracted: 33" , Extended: 57" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 6150Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

1.5x8 Hydraulic Cylinder - 1.5 Bore 8 Stroke Double Acting Welded Tang Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke8" Rod:1, Retracted: 17" , Extended: 25" , Pin holes: 0.75" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 5300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

3x16 Hydraulic Cylinder - 3 Bore 16 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:3" (OD 3.38"). , Stroke:16", Rod:1.5", Retracted:24", Extended:40", Pin holes:1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 21200Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal Design: The AMRAP...

2x22 Hydraulic Cylinder - 2 Bore 22 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke22" Rod:1.25, Retracted: 30" , Extended: 52" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 8600Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2x36 Hydraulic Cylinder - 2 Bore 36 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke36" Rod:1.25, Retracted: 44" , Extended: 80" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 4120Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2.5x14 Hydraulic Cylinder - 2.5 Bore 14 Stroke Welded Double Acting Swivel Eye Hydraulic Cylinder 3500 PSI

Bore 2.5" (OD 2.88"), Stroke 14" Rod:1.5, Retracted: 24" , Extended: 38" , Pin holes: 1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 14720 Lbs Swivel Ball Welded Hydraulic Cylinder Features a swivel eye on both ends, providing flexibility and smooth motion in a variety of industrial, agricultural, and mobile applications. Precision-welded end caps,...

2x10 Hydraulic Cylinder - 2 Bore 10 Stroke Welded Double Acting Swivel Eye Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke 10" Rod:1.25, Retracted: 20" , Extended: 30" , Pin holes: 1" Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 9420 Lbs Swivel Ball Welded Hydraulic Cylinder Features a swivel eye on both ends, providing flexibility and smooth motion in a variety of industrial, agricultural, and mobile applications. Precision-welded end caps,...

1.5x6 Hydraulic Cylinder - 1.5 Bore 6 Stroke Welded Double Acting Swivel Eye Hydraulic Cylinder 3500 PSI

Bore 1.5" (OD 1.88"), Stroke 6", Rod 1", Retracted 13 1/4", Extended: 19 1/4" Pin holes 3/4". Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 5300 Lbs Swivel Ball Welded Hydraulic Cylinder Features a swivel eye on both ends, providing flexibility and smooth motion in a variety of industrial, agricultural, and mobile applications. Precision-welded end...

1x6 Hydraulic Cylinder - 1 Bore 6 Stroke Welded Double Acting Swivel Eye Hydraulic Cylinder 3500 PSI

Bore 1" (OD 1.38"), Stroke 6", Rod 1", Retracted 13 1/4", Extended: 19 1/4" Pin holes 1/2". Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 2350 Lbs Swivel Ball Welded Hydraulic Cylinder Features a swivel eye on both ends, providing flexibility and smooth motion in a variety of industrial, agricultural, and mobile applications. Precision-welded end...

5x21.5 Hydraulic Cylinder for Dump Trailer – 5" Bore x 21.5" Stroke, 3500 PSI Double Acting Dump Hoist Hydraulic Cylinder, Welded Steel Trailer Hoist Cylinder (5x21.5)

Bore 5" (OD 5.38"), Stroke 21.5" Rod:2, Retracted: 29.37" , Extended: 50.87" , Pin holes: 0.63" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 57,000 Lbs Swivel Ball Welded Hydraulic Cylinder Multiple Applications – Ideal for dump trailers, dump beds, tilt trailers, scissor hoists, and other hydraulic lifting systems. Select the correct bore, stroke, mounting...

5x20 Hydraulic Cylinder for Dump Trailer – 5" Bore x 20" Stroke, 3500 PSI Double Acting Dump Hoist Hydraulic Cylinder, Welded Steel Trailer Hoist Cylinder (5x20)

Bore 5" (OD 5.38"), Stroke 20" Rod:2, Retracted: 27.5" , Extended: 47.5" , Pin holes: 0.63" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 57,000 Lbs Swivel Ball Welded Hydraulic Cylinder Multiple Applications – Ideal for dump trailers, dump beds, tilt trailers, scissor hoists, and other hydraulic lifting systems. Select the correct bore, stroke, mounting...
