2.5x8 Hydraulic Cylinder - 2.5" Bore x 8" Stroke Hydraulic Cylinder | Swivel Eye Mount | 3500 PSI - (2.5x8) - SAE#8

Bore 2.5" (OD 2.88"), Stroke 8-inch, Rod 1 1/2", Retracted 15 1/2", Extended: 23 1/2" Pin holes 1". Double Acting Hydraulic Cylinder with SAE#8 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 14720 Lbs Swivel Ball Welded Hydraulic Cylinder Features a swivel eye on both ends, providing flexibility and smooth motion in a variety of industrial, agricultural, and mobile applications. Precision-welded...

3.5x48 Hydraulic Cylinder - 3.5 Bore 48 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

3.5x48 Hydraulic Cylinder - 3.5" Bore 48" Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI Bore 3.5" (OD 3.88"), Stroke 48" Rod:1.5, Retracted: 58.25" , Extended: 106.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with 1/2" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 5040 Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including...

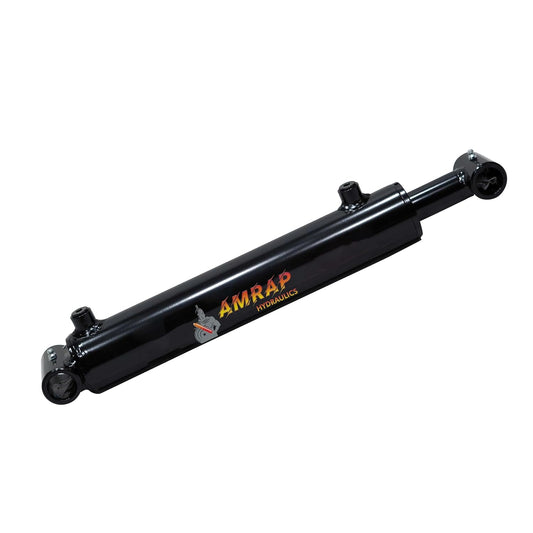

4x42 Hydraulic Cylinder - 4 Bore 42 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 4" (OD 3.88"), Stroke 42" Rod: 2, Retracted: 52" , Extended: 94" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 20,500 Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust...

6x36 Hydraulic Cylinder - 6" Bore 36" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 47, Extended: 83, SAE #12 (6x36)

Bore:6" (OD 6.38")., Stroke:36", Rod: 3", Retracted:47", Extended:83", Pin holes:1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 83,100Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal Design: The...

6x30 Hydraulic Cylinder - 6" Bore 30" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 41, Extended: 71, SAE #12

Bore: 6" (OD 6.38")., Stroke:30", Rod:3", Retracted: 41", Extended: 71", Pin holes:1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 83300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal...

6x28 Hydraulic Cylinder - 6" Bore 28" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 39, Extended: 67, SAE #12

Bore:6" (OD 6.38")., Stroke:28", Rod:3", Retracted:39", Extended:67", Pin holes:1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 83300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal Design: The AMRAP...

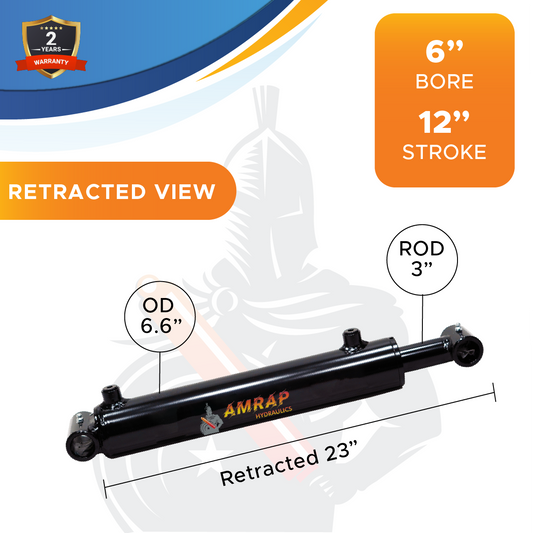

6x12 Hydraulic Cylinder - 6" Bore 12" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 23, Extended: 35, SAE #12

Bore: 6" (OD 6.38")., Stroke: 12", Rod: 3", Retracted: 23", Extended: 35", Pin holes:1" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 83300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

5x48 Hydraulic Cylinder - 5" Bore 48" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 59, Extended: 107,3/4"-NPT

Bore 5" (OD 5.5"), Stroke48" Rod:2.5, Retracted: 59" , Extended: 107" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with 3/4"-NPT Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 37700Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

5x36 Hydraulic Cylinder - 5" Bore 36" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 47, Extended: 83,3/4"-NPT

Bore 5" (OD 5.5"), Stroke36" Rod:2.5, Retracted: 47" , Extended: 83" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with 3/4"-NPT Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

5x30 Hydraulic Cylinder - 5" Bore 30" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 41, Extended: 71,3/4"-NPT

Bore 5" (OD 5.5"), Stroke30" Rod:2.5, Retracted: 41" , Extended: 71" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with 3/4"-NPT Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2" Bore 19.75" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI. (5x24)

Bore 4" (OD 5.38"), Stroke12" Rod:2.5, Retracted: 35" , Extended: 59" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

5x18 Hydraulic Cylinder - 5" Bore 18" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 29, Extended: 47,SAE #12

Bore 5" (OD 5.5"), Stroke18" Rod:2.5", Retracted: 29" , Extended: 47" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

5x16 Hydraulic Cylinder - 5" Bore 16" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 27, Extended: 43,SAE #12

Bore 5" (OD 5.5"), Stroke16" Rod:2.5", Retracted: 27" , Extended: 43" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

5x14 Hydraulic Cylinder - 5" Bore 14" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 25, Extended: 39,SAE #12

Bore 5" (OD 5.5"), Stroke14" Rod:2.5", Retracted: 25" , Extended: 39" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

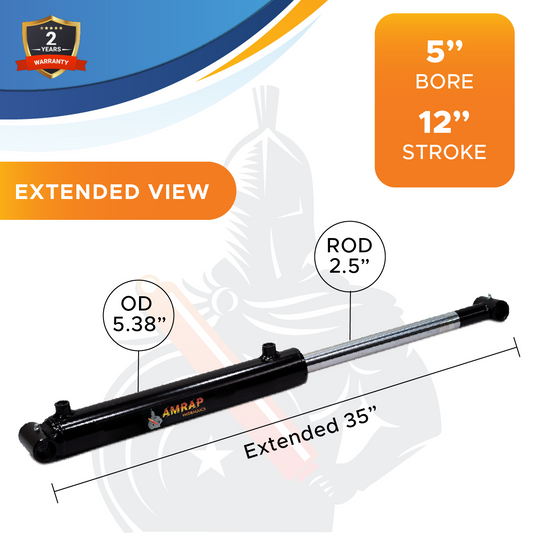

5x12 Hydraulic Cylinder - 5" Bore 12" Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI Retracted: 23, Extended: 35,SAE #12

Bore 5" (OD 5.5"), Stroke12" Rod:2.5", Retracted: 23" , Extended: 35" , Pin holes: 1.5" Welded Double Acting Hydraulic Cylinder with SAE #12 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 58900Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...
