2x38 Hydraulic Cylinder - 2 Bore 38 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

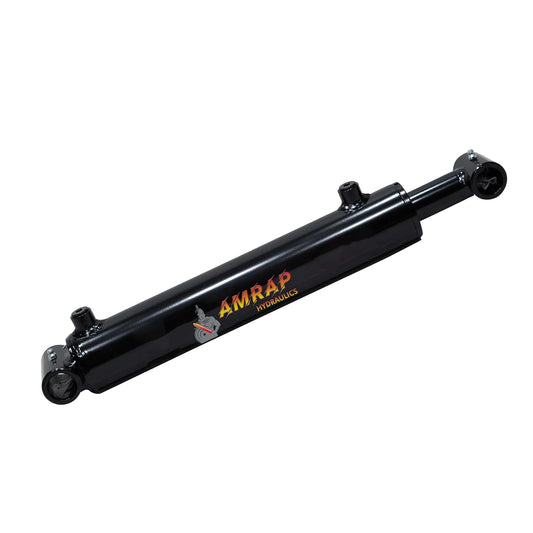

2x38 Hydraulic Cylinder - 2 Bore 38 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke38" Rod:1.25, Retracted: 46" , Extended: 84" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 4000Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2x4 Hydraulic Cylinder - 2 Bore 4 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

2x4 Hydraulic Cylinder - 2 Bore 4 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke4" Rod:1.25, Retracted: 12" , Extended: 16" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 9420Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2x4 Hydraulic Cylinder - 2 Bore 4 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2" (OD 2.38"), Stroke4" Rod:1.125, Retracted: 14.25" , Extended: 18.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 7850Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness,...

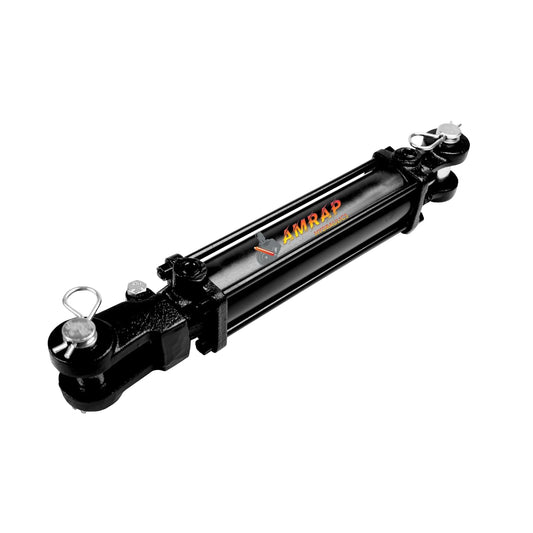

2x40 Hydraulic Cylinder - 2 Bore 40 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

2x40 Hydraulic Cylinder - 2 Bore 40 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 2" (OD 2.38"), Stroke40" Rod:1.25, Retracted: 48" , Extended: 88" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#6 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 4000Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

2x6 Hydraulic Cylinder - 2 Bore 6 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

2x6 Hydraulic Cylinder - 2 Bore 6 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore:2" (OD 2.38")., Stroke:6", Rod:1.25", Retracted:14", Extended:20", Pin holes:1" Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of 9420 LBs, Welded Cross Tube Cylinder Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility and Universal...

2x8 Hydraulic Cylinder - 2 Bore 8 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 2" (OD 2.38"), Stroke 8" Rod:1.125, Retracted: 18.25" , Extended: 26.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with3/8" NPTPorts (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 7850Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their...

3.5x10 Hydraulic Cylinder - 3.5 Bore 10 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3.5x14 Hydraulic Cylinder - 3.5 Bore 14 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

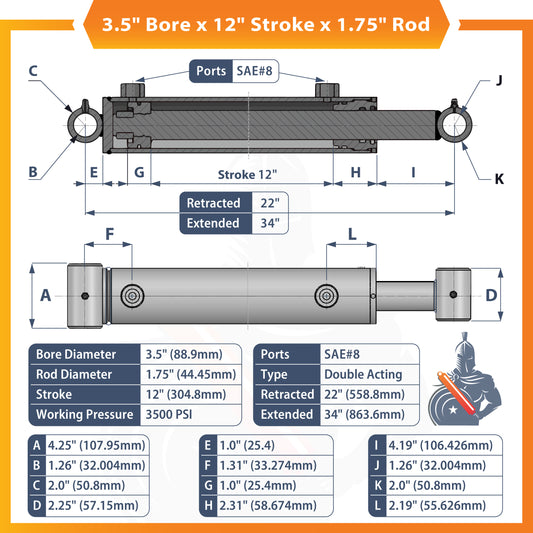

3.5x12 Hydraulic Cylinder - 3.5 Bore 12 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke12" Rod:1.75, Retracted: 22" , Extended: 34" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 28860Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

3.5x16 Hydraulic Cylinder - 3.5 Bore 16 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3.5x14 Hydraulic Cylinder - 3.5 Bore 14 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke14" Rod:1.75, Retracted: 24" , Extended: 38" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 28860Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...
