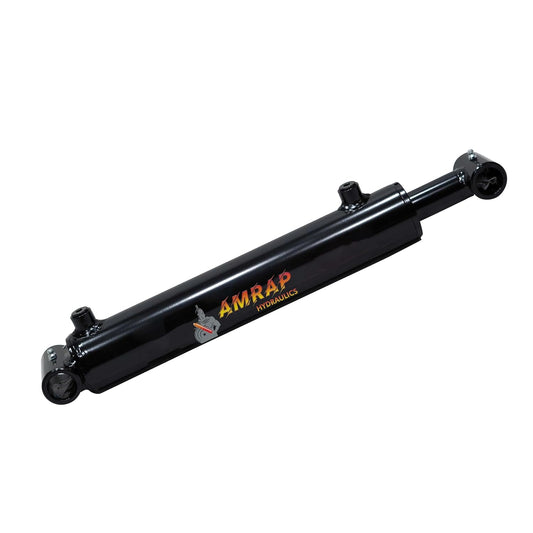

3.5x34 Hydraulic Cylinder - 3.5 Bore 34 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke34" Rod:1.75, Retracted: 44" , Extended: 78" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 16300Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

3.5x36 Hydraulic Cylinder - 3.5 Bore 36 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke36" Rod:1.75, Retracted: 46" , Extended: 82" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 15330Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

3.5x38 Hydraulic Cylinder - 3.5 Bore 38 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3.5x38 Hydraulic Cylinder - 3.5 Bore 38 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke38" Rod:1.75, Retracted: 48" , Extended: 86" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 15330Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

3.5x4 Hydraulic Cylinder - 3.5 Bore 4 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3.5x40 Hydraulic Cylinder - 3.5 Bore 40 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3.5x4 Hydraulic Cylinder - 3.5 Bore 4 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke4" Rod:1.75, Retracted: 14" , Extended: 18" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 28860Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

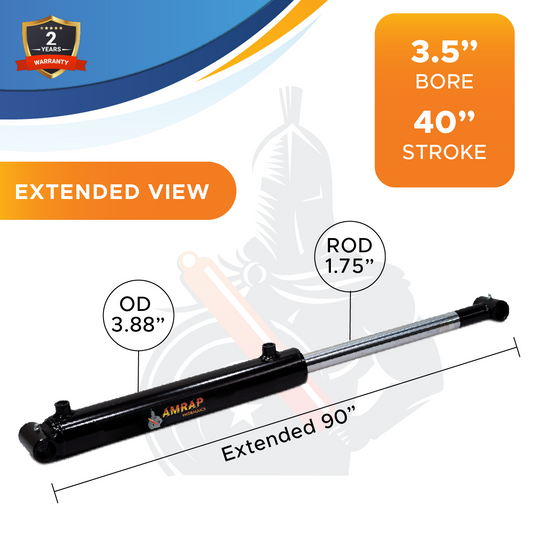

3.5x40 Hydraulic Cylinder - 3.5 Bore 40 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke40" Rod:1.75, Retracted: 50" , Extended: 90" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 12,740 Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong...

3.5x6 Hydraulic Cylinder - 3.5 Bore 6 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3.5x6 Hydraulic Cylinder - 3.5 Bore 6 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3.5" (OD 3.88"), Stroke6" Rod:1.75, Retracted: 16" , Extended: 22" , Pin holes: 1.25" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 28860Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

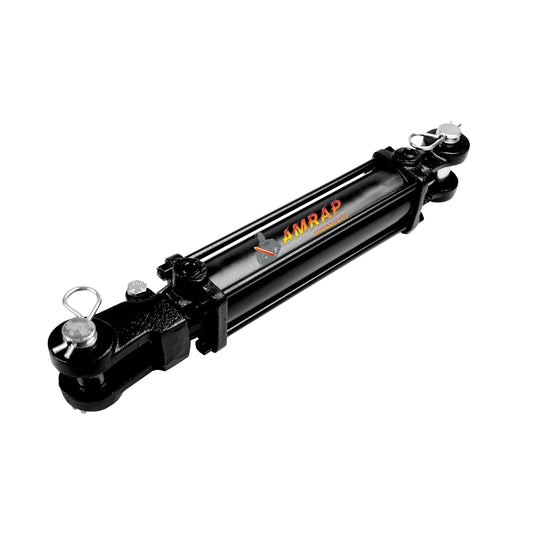

3.5x8 Hydraulic Cylinder - 3.5 Bore 8 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3x10 Hydraulic Cylinder - 3 Bore 10 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenanceTie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder...

3x10 Hydraulic Cylinder - 3 Bore 10 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3" (OD 3.38"), Stroke10" Rod:1.5, Retracted: 18" , Extended: 28" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 21200Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...

3x12 Hydraulic Cylinder - 3 Bore 12 Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

Bore 3" (OD 3.38"), Stroke 8 ASAE" Rod:1.25, Retracted: 20.25" , Extended: 28.25" , Pin holes: 1" Double Acting Hydraulic Cylinder with 1/2" NPT (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 21200Lbs Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored...

3x12 Hydraulic Cylinder - 3 Bore 12 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

Bore 3" (OD 3.38"), Stroke12" Rod:1.5, Retracted: 20" , Extended: 32" , Pin holes: 1" Welded Double Acting Hydraulic Cylinder with SAE#8 Ports (O-ring boss), Rated Pressure of 3500 PSI, Column Load Capacity of 21200Lbs Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles. Strong Compatibility...
