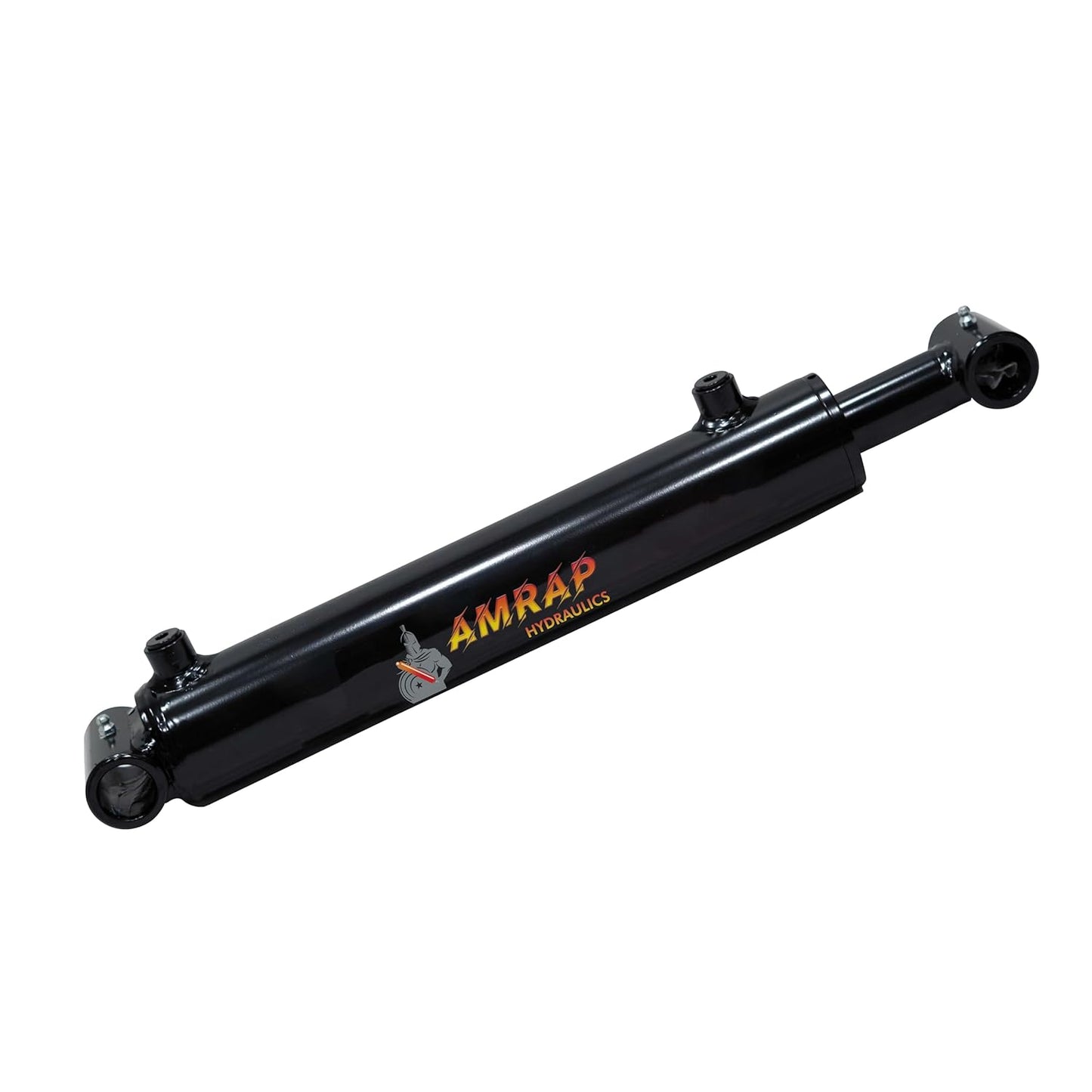

1.5x10 Hydraulic Cylinder - 1.5 Bore 10 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

1.5x10 Hydraulic Cylinder - 1.5 Bore 10 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

$92.00
$92.00
Sale Sold out

Type : Welded Cylinder

SKU : 1510-WT

Tags : 1.5,

Collections : Shop All, Welded Cross Tubes Cylinder,

Availability : Out Of Stock

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

View full details

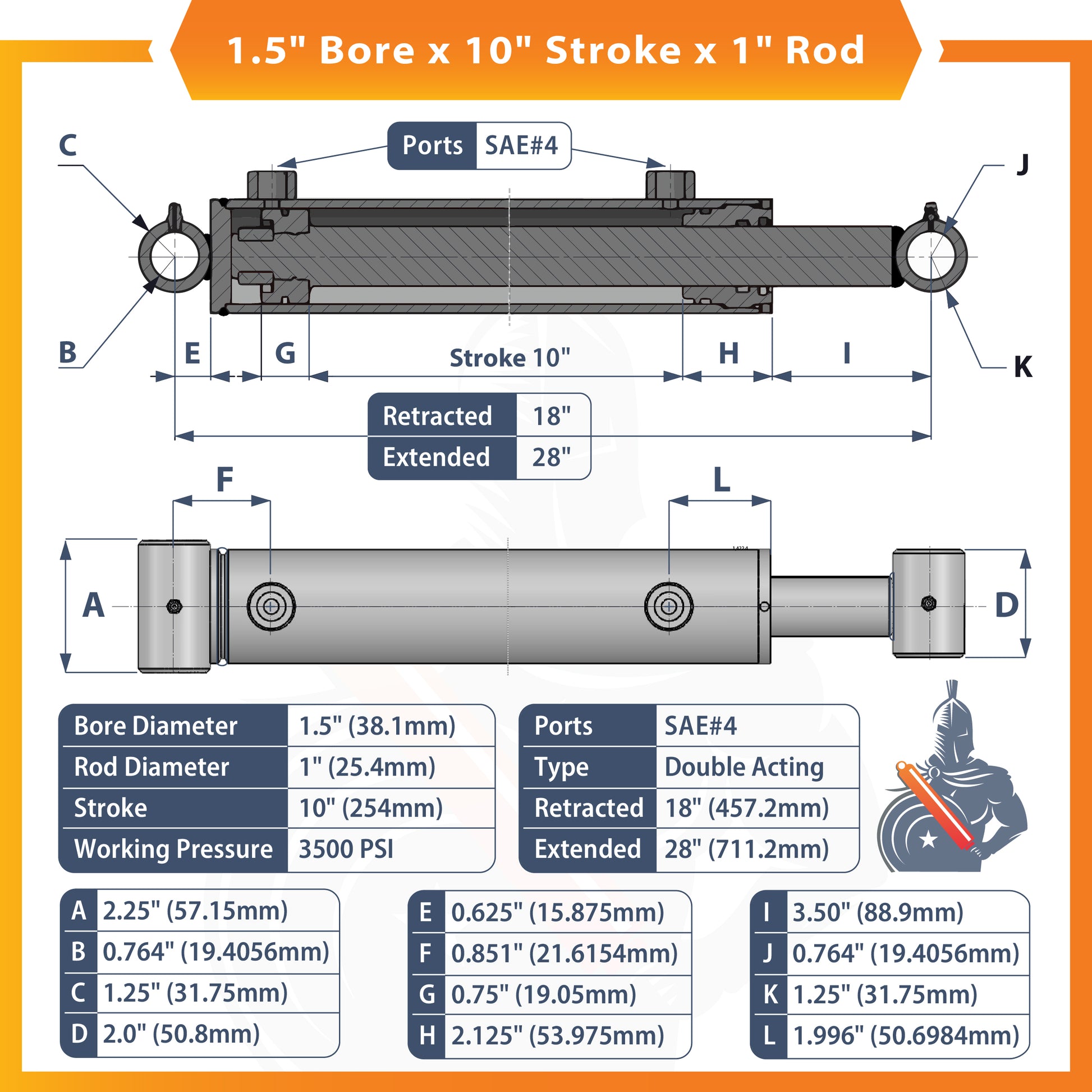

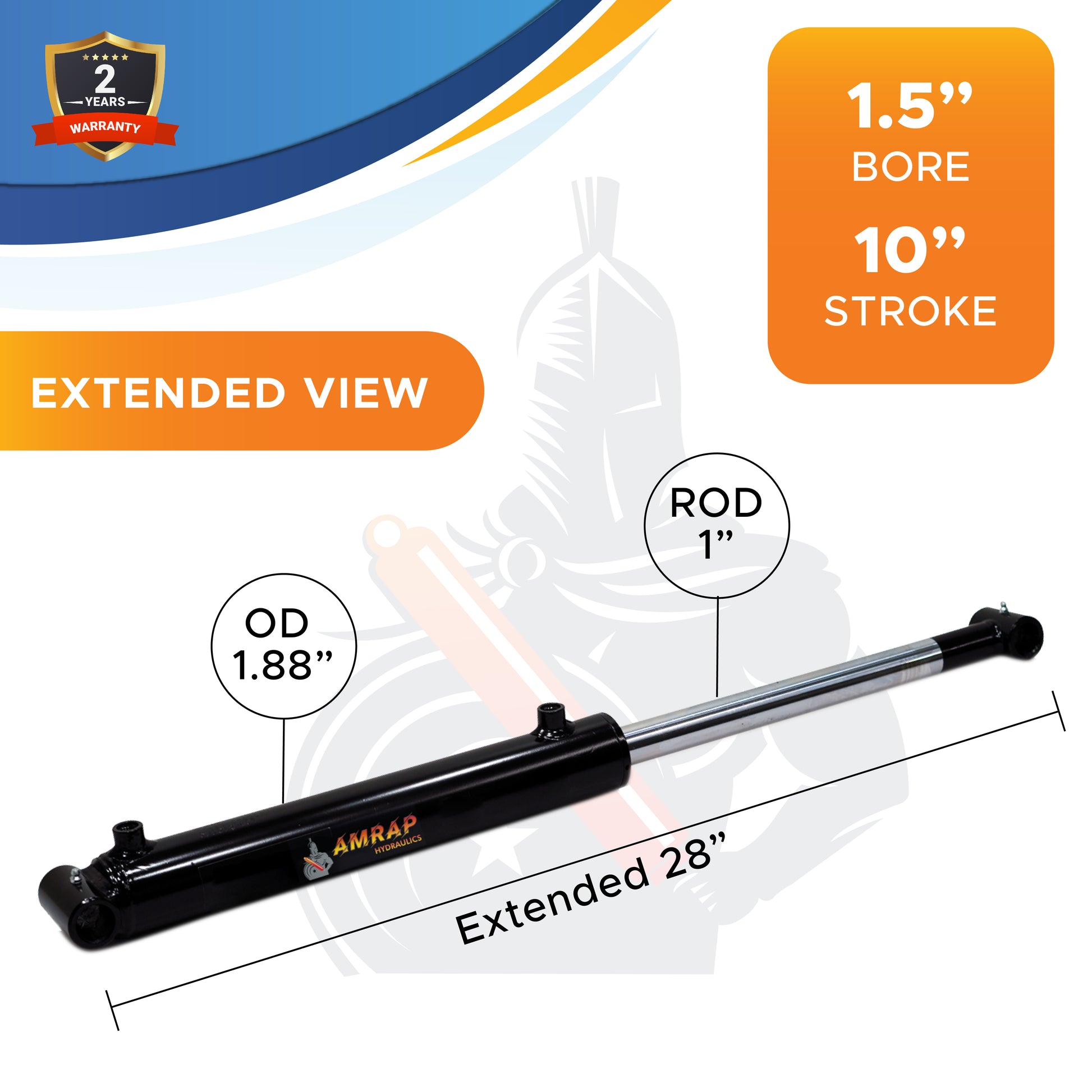

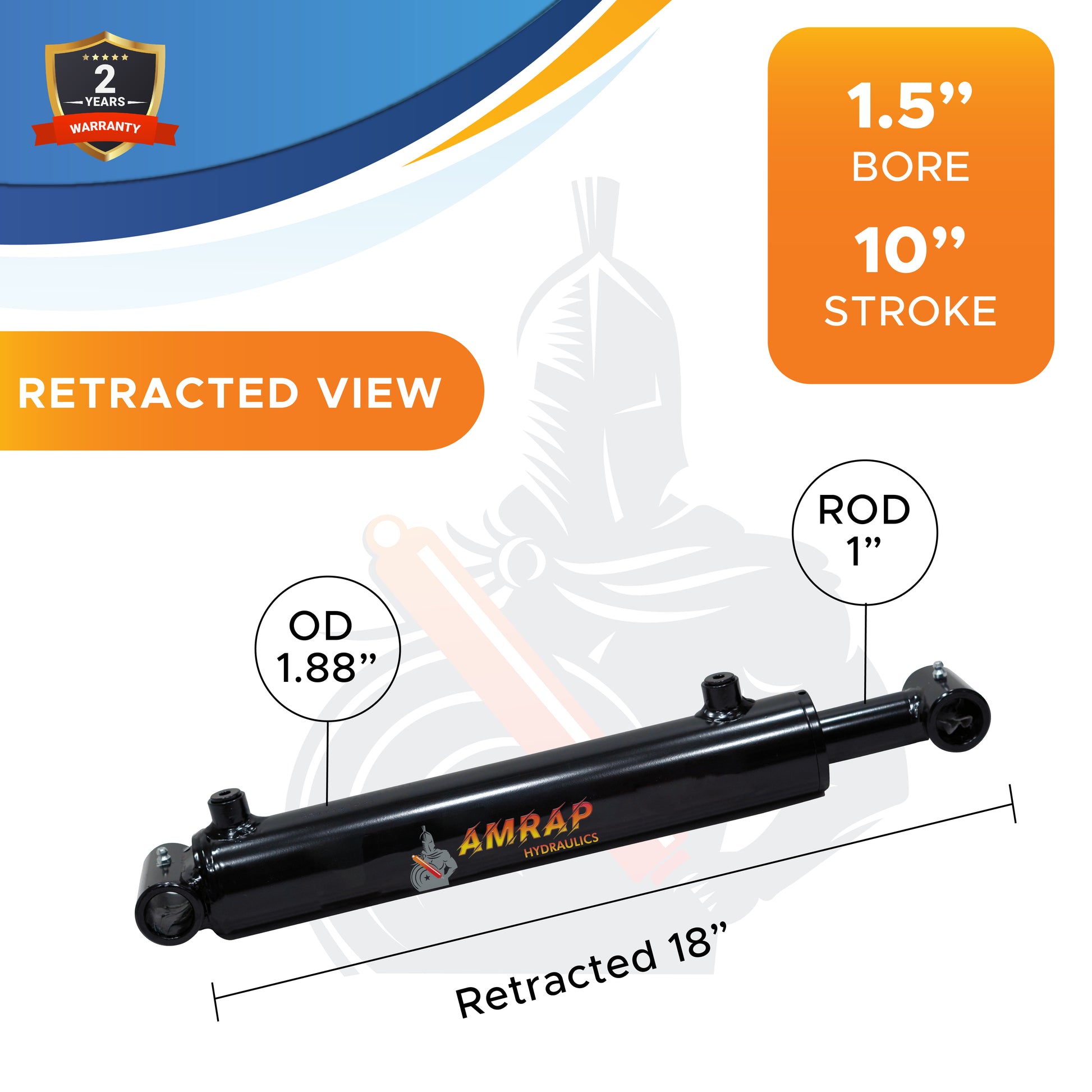

  • Bore: 1.5" (OD 1.88"), Stroke: 10 inches, Rod: 1", Retracted: 18", Extended: 28", Pin holes: 3/4"

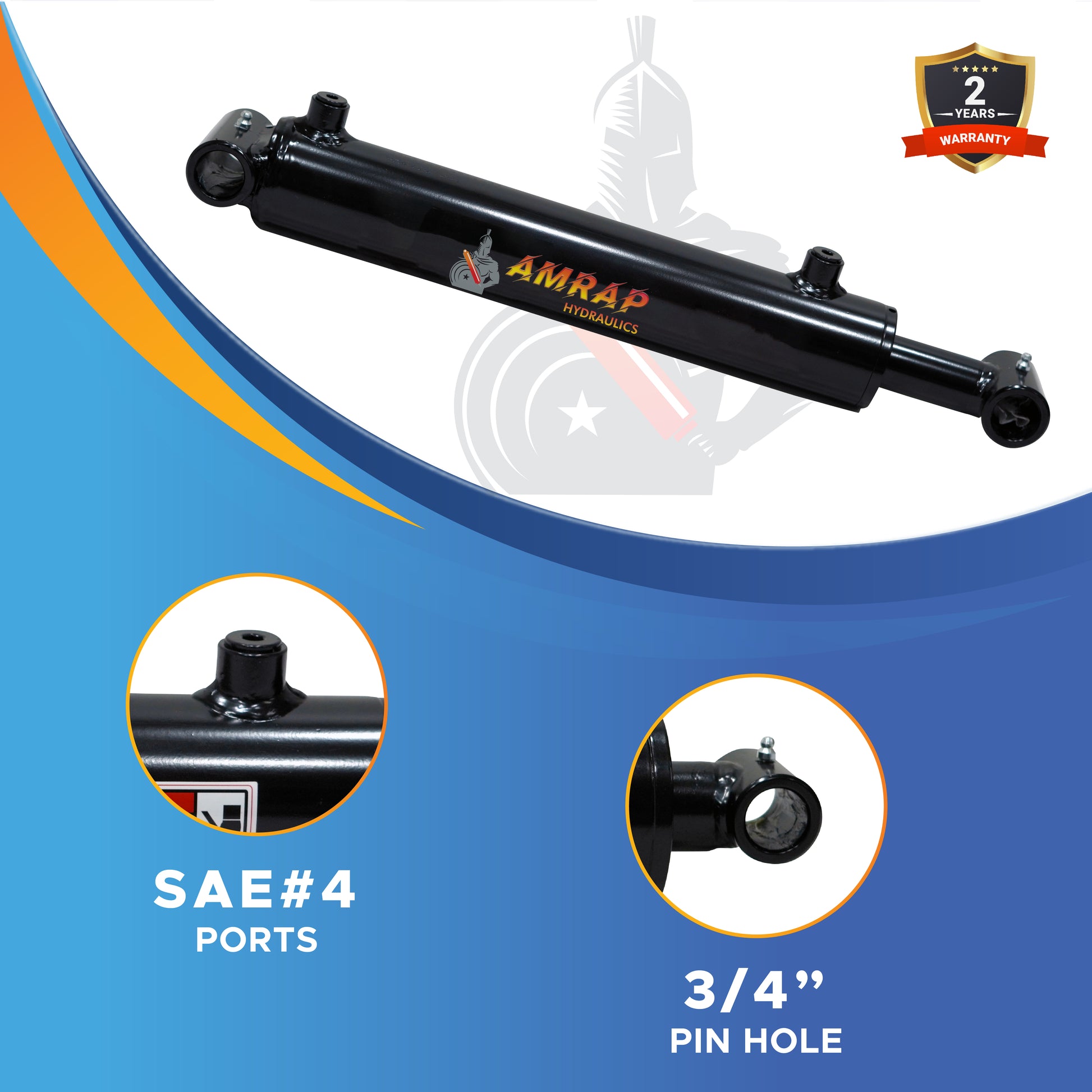

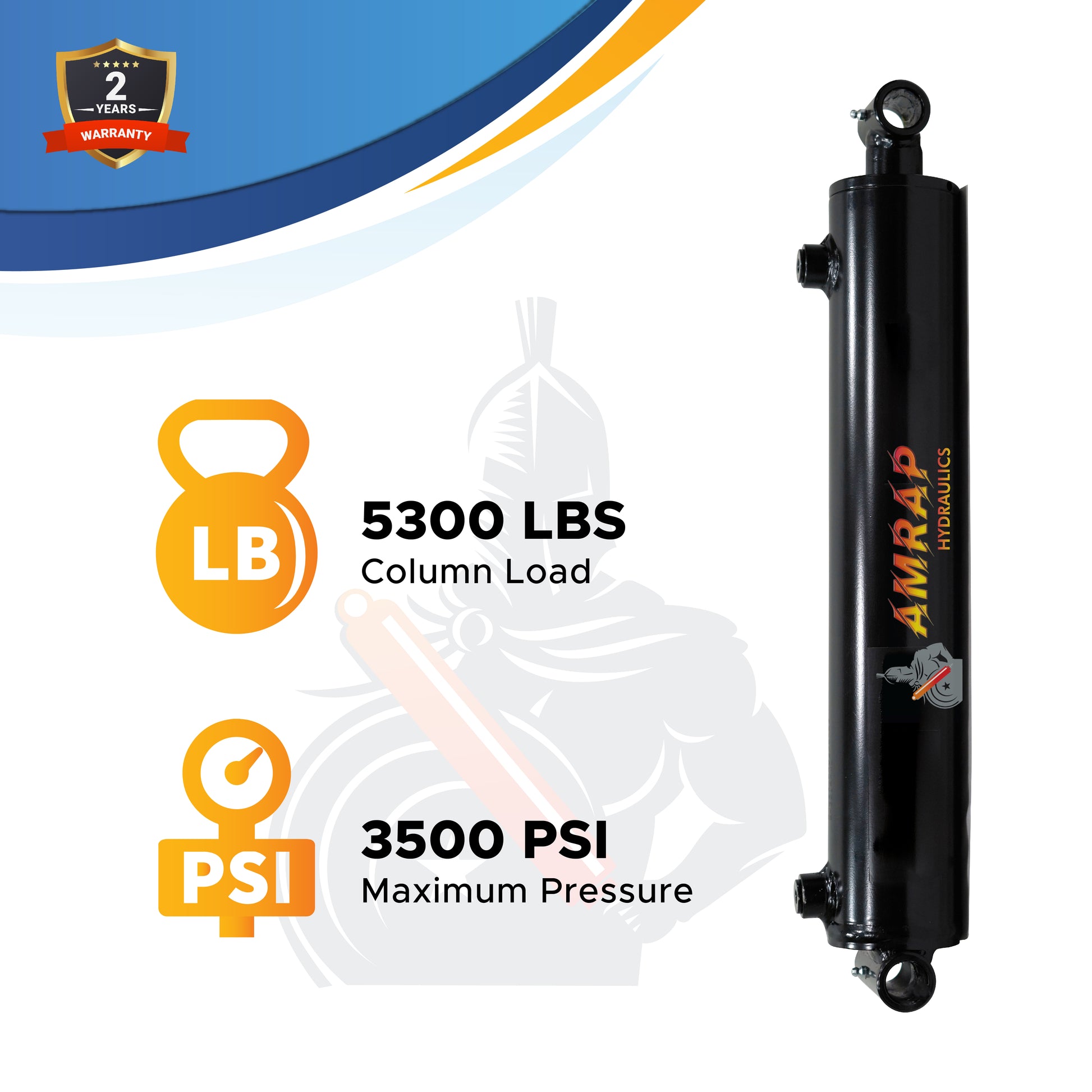

  • Welded Double Acting Hydraulic Cylinder with SAE 4 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 5300 lbs.

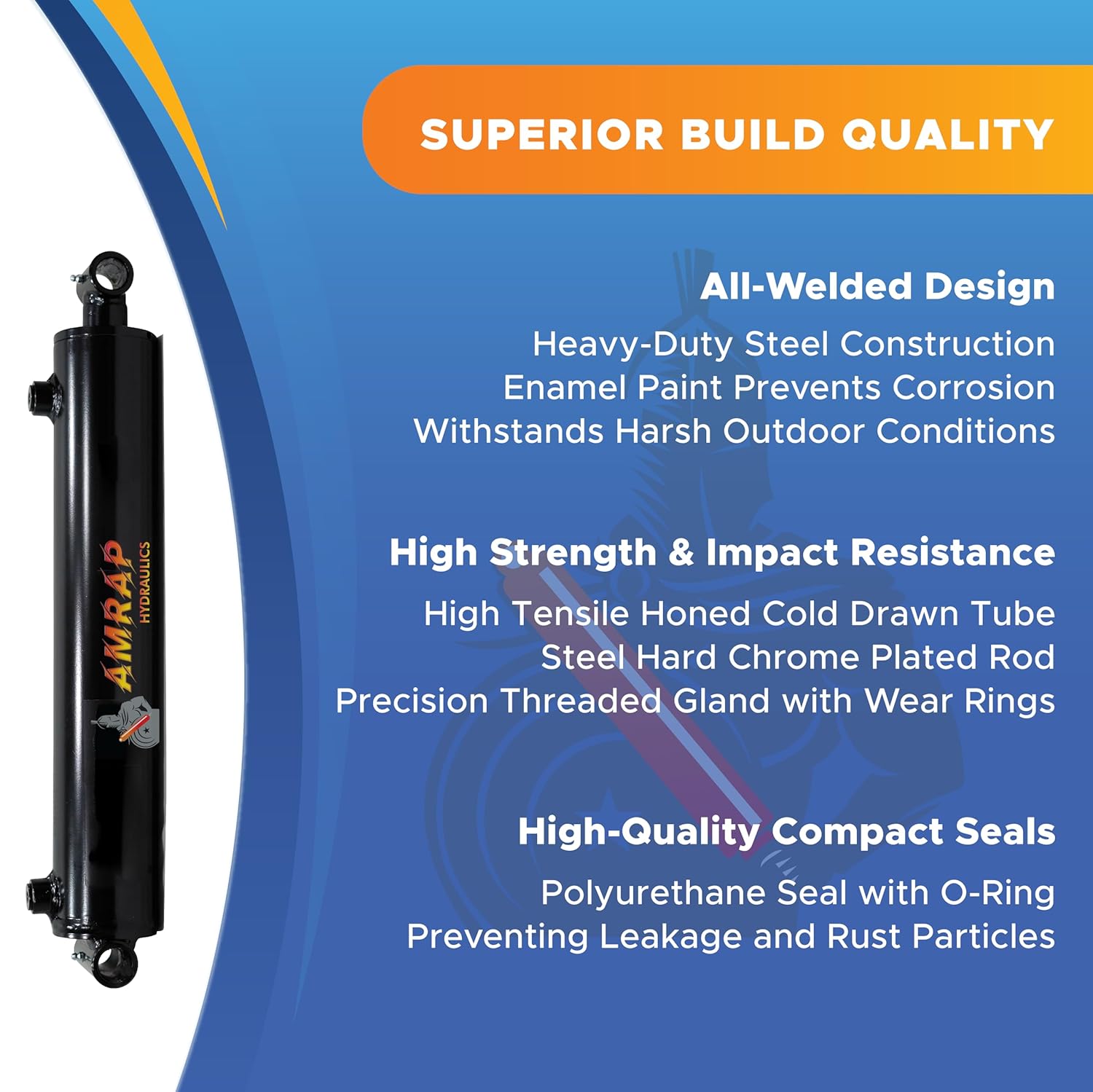

  • Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles.
  • Strong Compatibility and Universal Design: The AMRAP Cross Tube hydraulic cylinder seamlessly integrates with front-end loaders from all leading brands, serving as an affordable replacement for the original equipment.
  • 2-Year Manufacturer’s Warranty: All AMRAP Hydraulics products come with a 2-year manufacturer's warranty*. That’s 24 months of peace of mind!
