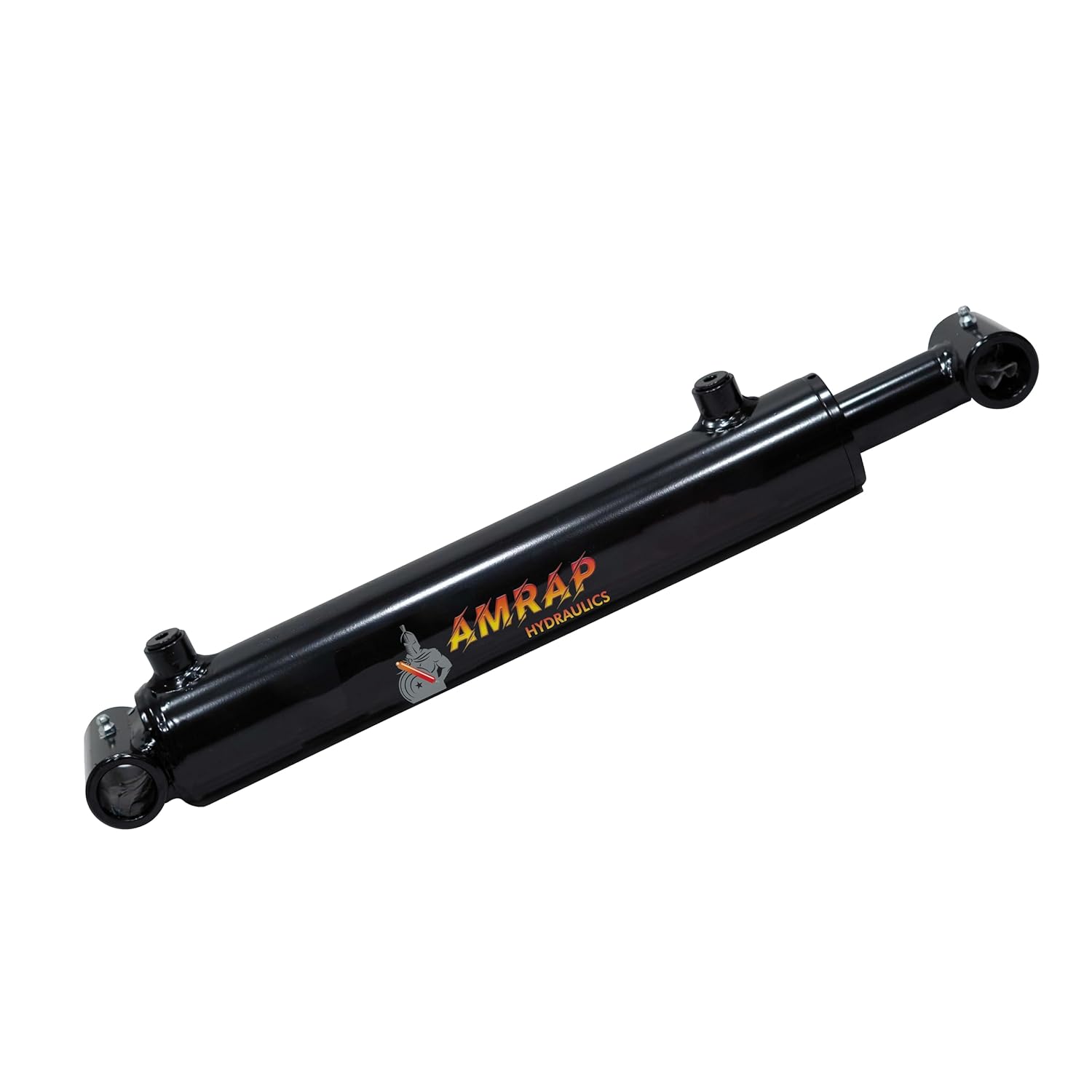

2.5x22 Hydraulic Cylinder - 2.5 Bore 22 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

2.5x22 Hydraulic Cylinder - 2.5 Bore 22 Stroke Double Acting Welded Cross Tube Hydraulic Cylinder 3500 PSI

$180.00
$180.00
Sale Sold out

Type : Welded Cylinder

SKU : 2522-WT

Tags : 2.5,

Collections : Welded Cross Tubes Cylinders,

Availability : In Stock

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

View full details

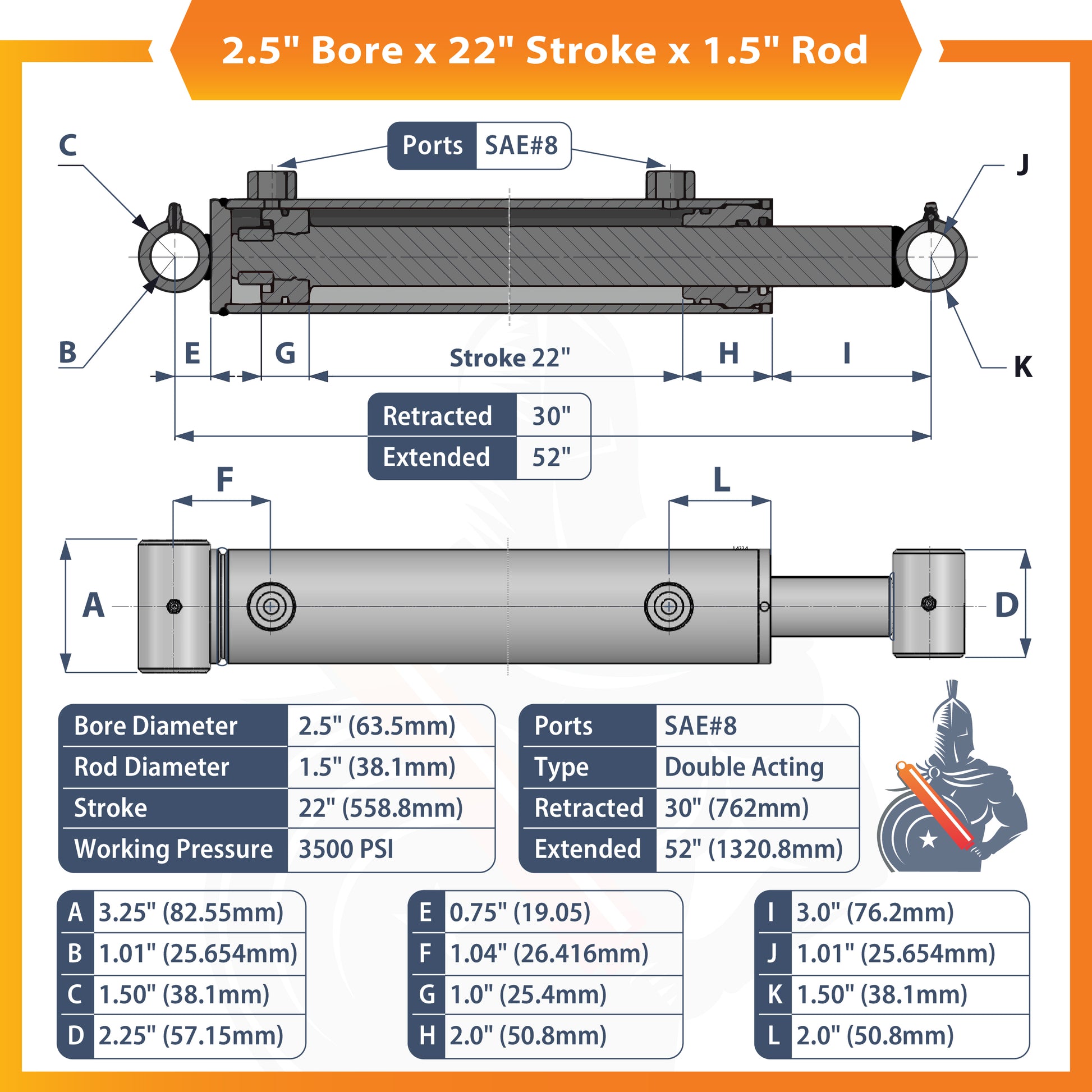

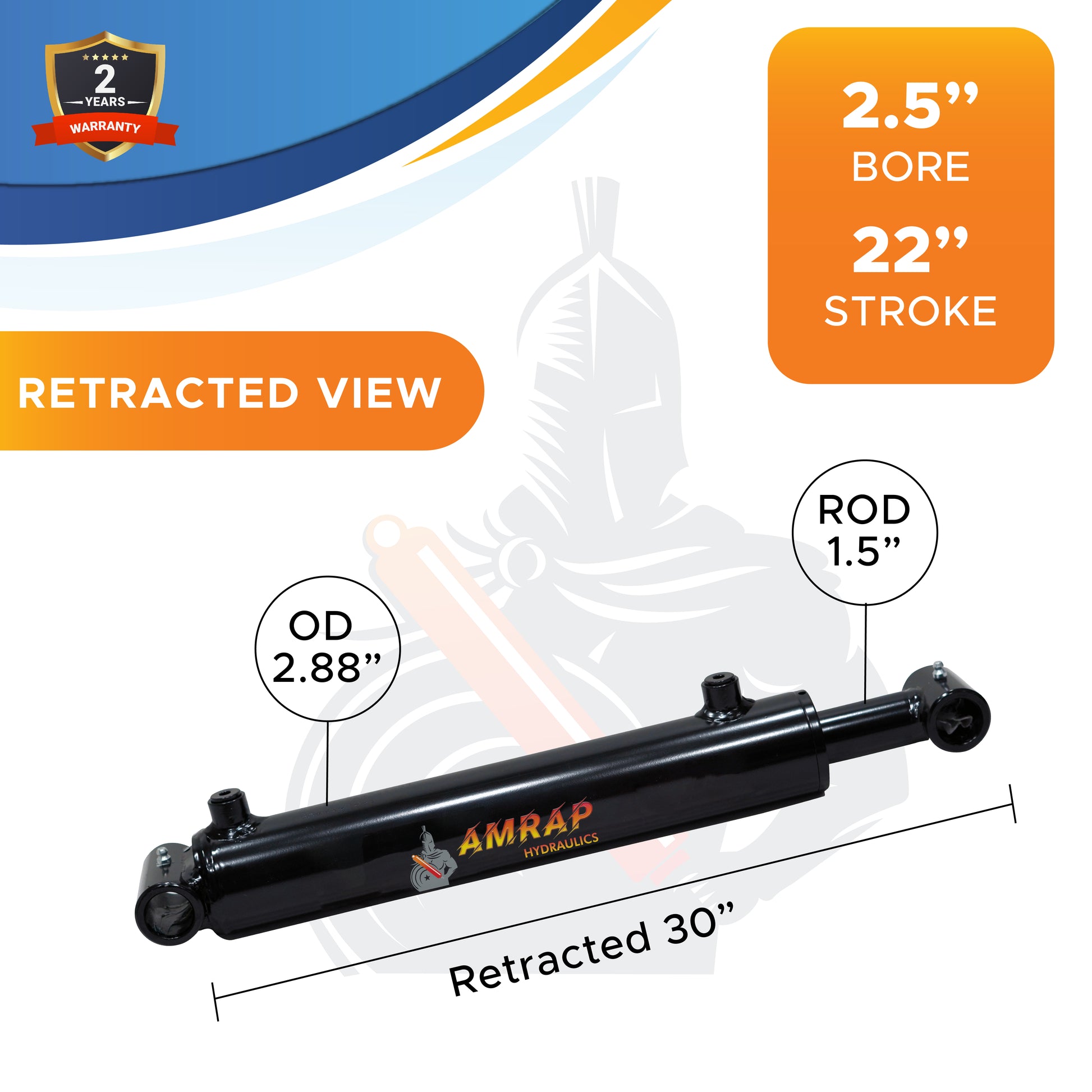

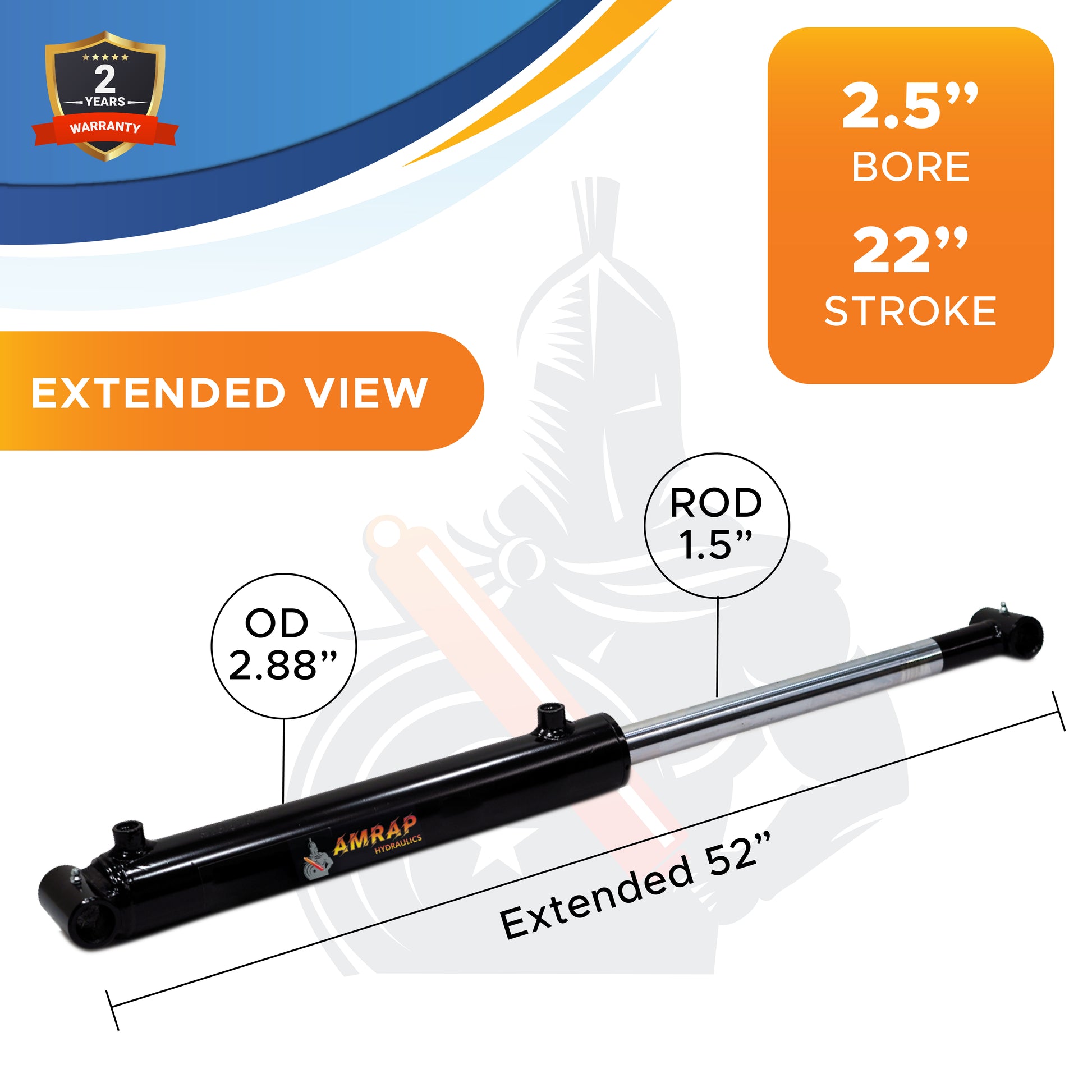

  • Bore: 2.5" (OD 2.88"), Stroke: 22 inches, Rod: 1 1/2", Retracted: 30", Extended: 52", Pin holes: 1"

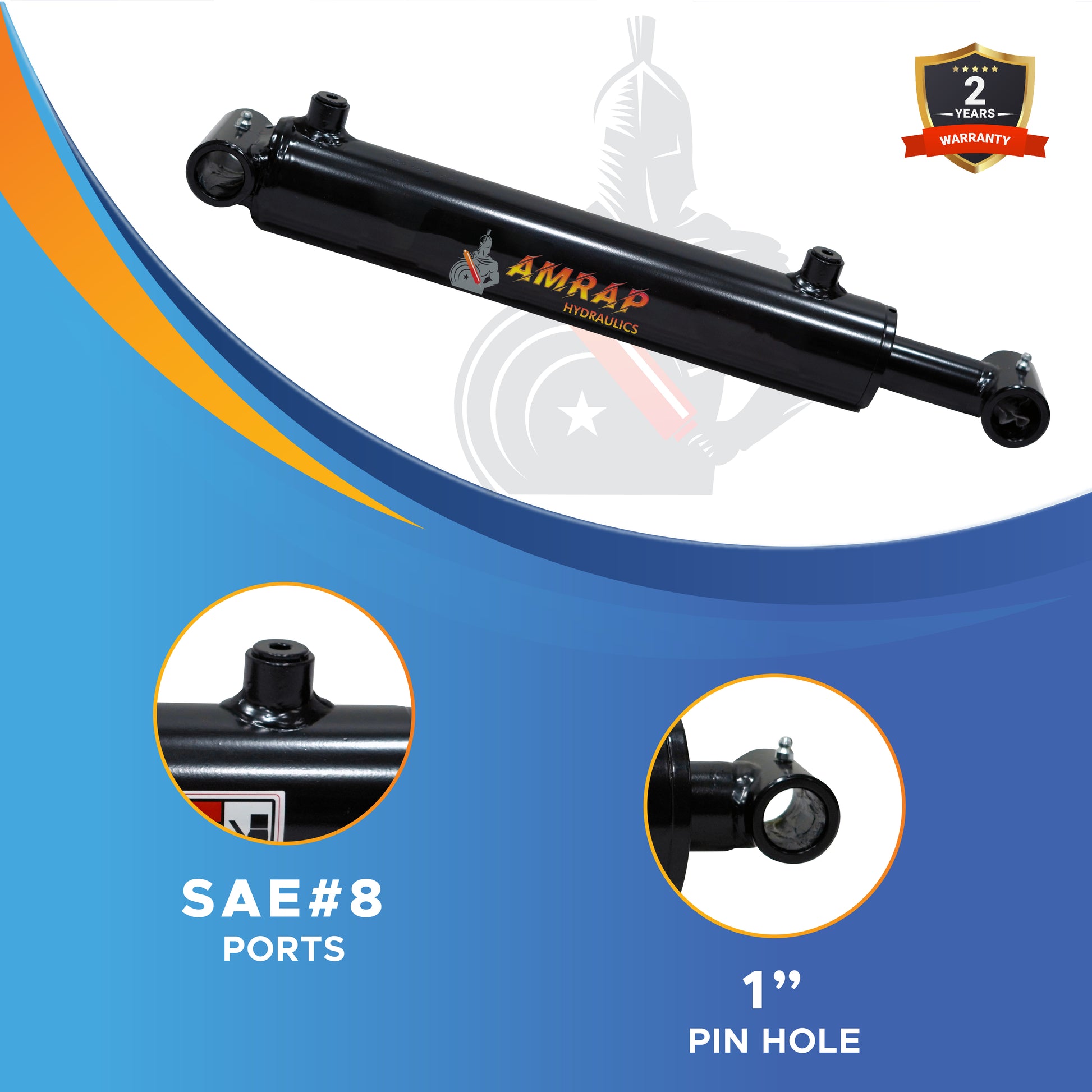

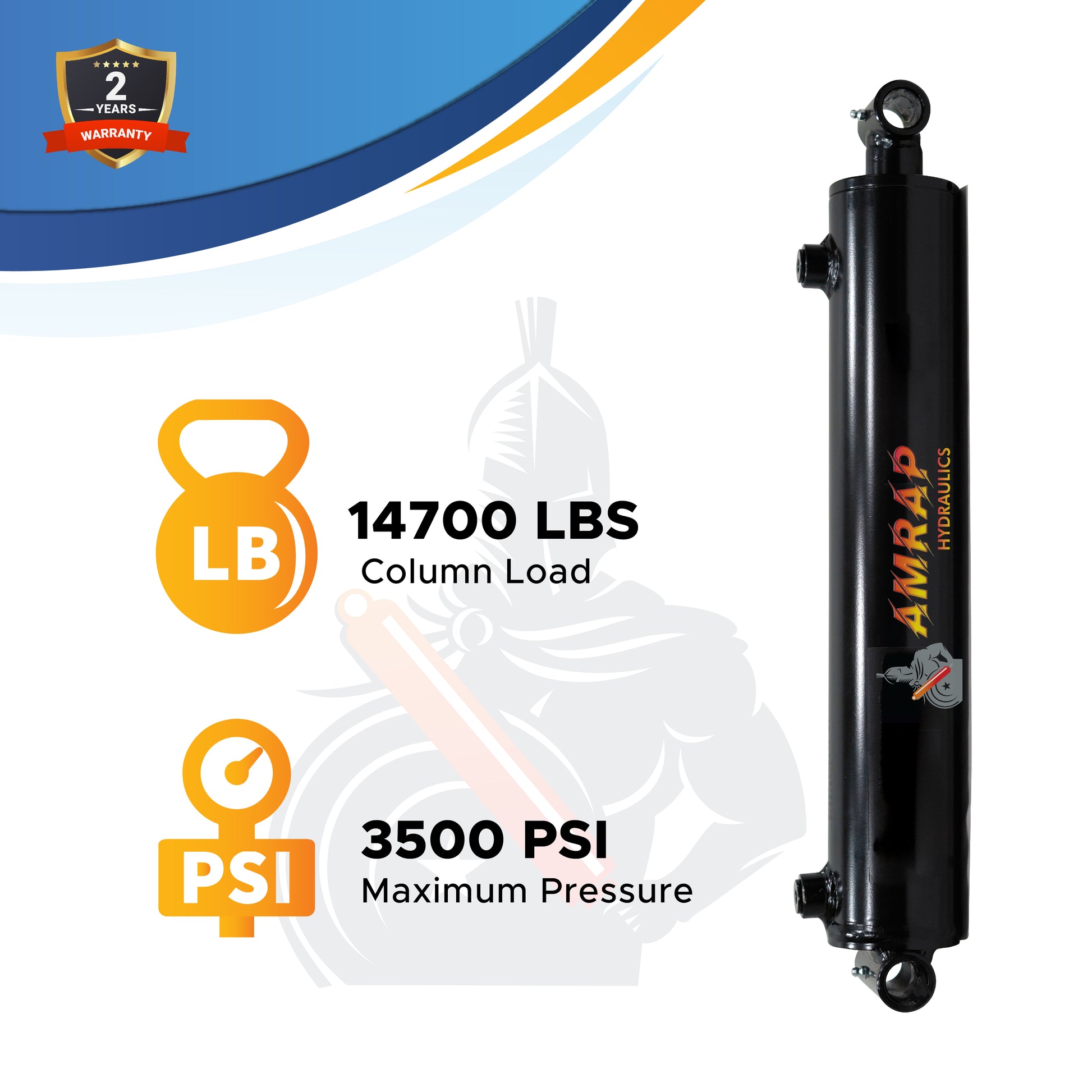

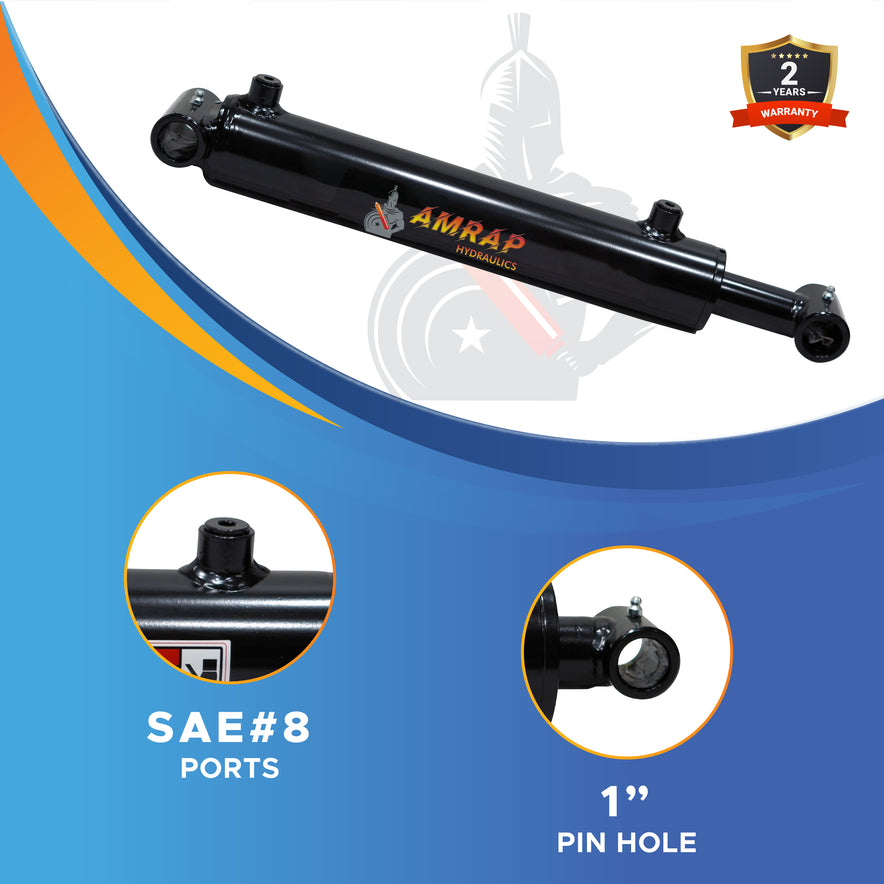

  • Welded Double Acting Hydraulic Cylinder with SAE 8 Ports (O-ring boss), Rated Pressure: 3500 PSI, Column Load Capacity: 14720 l lbs.
  • Superior Build Quality: All-Welded Design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles.
  • Strong Compatibility and Universal Design: The AMRAP Cross Tube hydraulic cylinder seamlessly integrates with front-end loaders from all leading brands, serving as an affordable replacement for the original equipment
  • 2-Year Manufacturer’s Warranty: All AMRAP Hydraulics products come with a 2-year manufacturer's warranty*. That’s 24 months of peace of mind!
