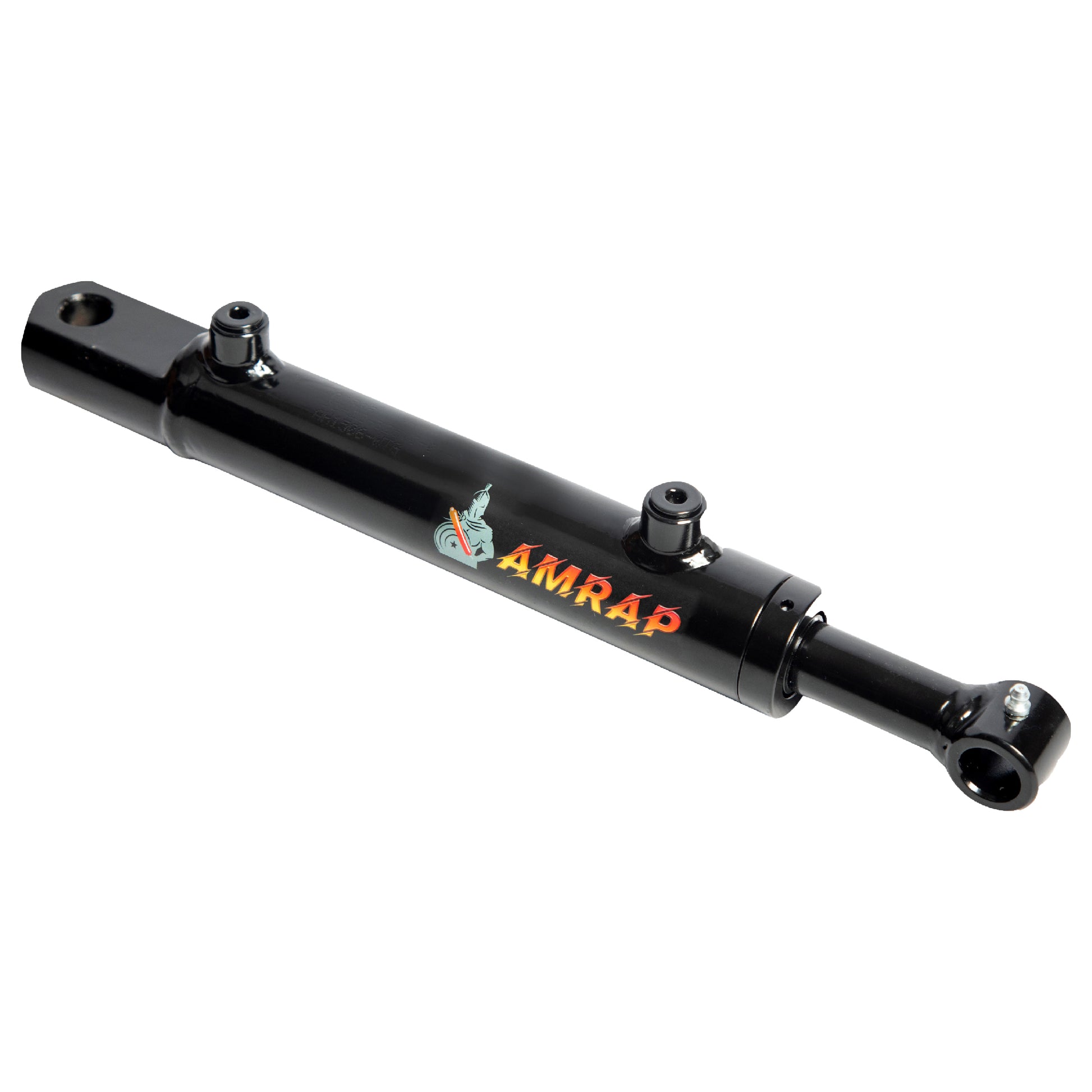

2x16 Hydraulic Cylinder - Double Acting Welded Tang Universal Hydraulic Cylinder 2" Bore , 16" Stroke , SAE#6 - 3500 Psi

2x16 Hydraulic Cylinder - Double Acting Welded Tang Universal Hydraulic Cylinder 2" Bore , 16" Stroke , SAE#6 - 3500 Psi

$175.15
$175.15
Sale Sold out

Type : Tang Cylinder

SKU : AH2016-WTG

Collections : Hydraulic Cylinder, Shop All, Tang Cylinder,

Availability : In Stock

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

View full details

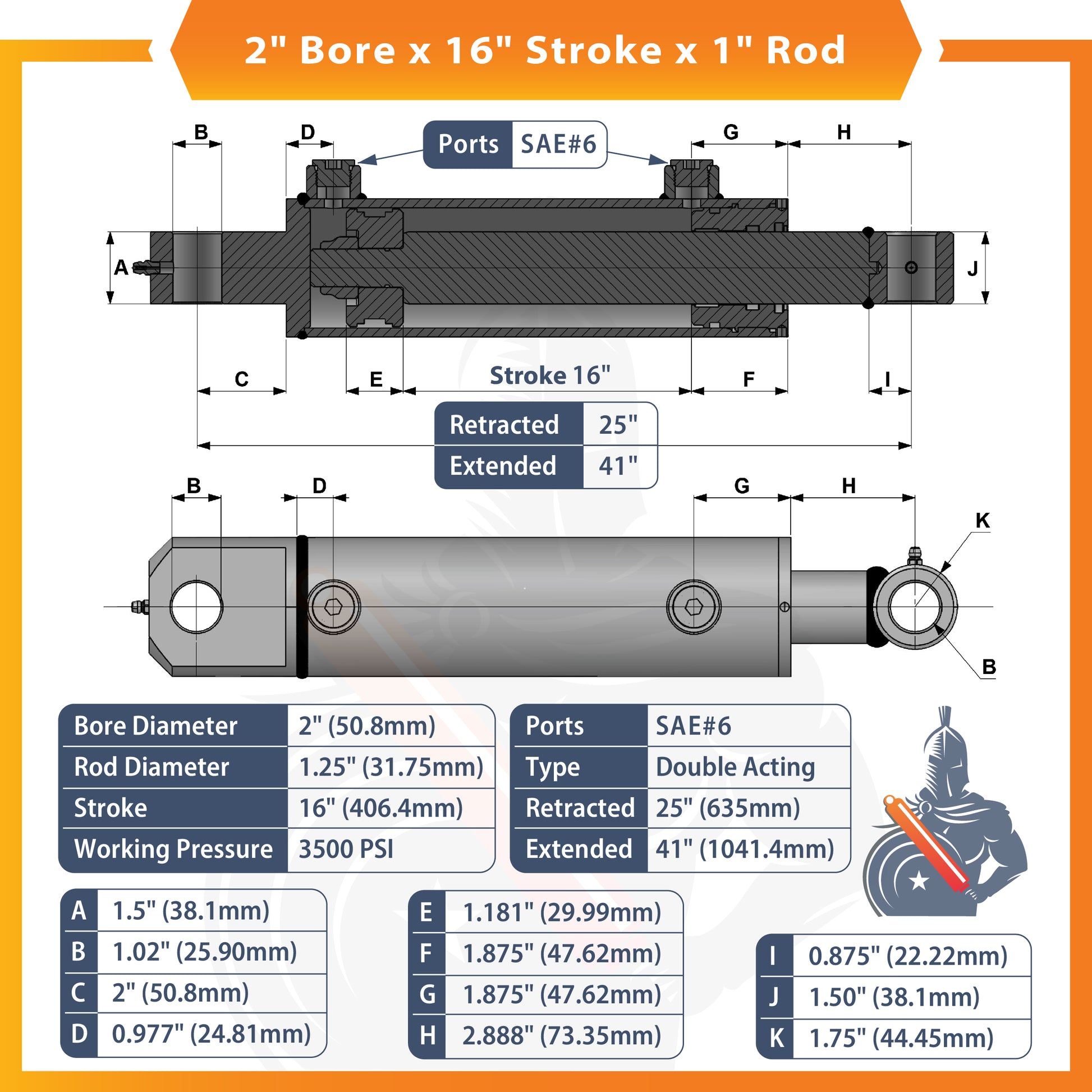

  • Bore:2" (OD 2.38").,  Stroke:16",  Rod:1 1/4",  Retracted:25",  Extended:41",  Pin holes:1"
  • Double Acting Hydraulic Cylinder with SAE#6 Ports (Female Pipe), Rated Pressure of 3500 PSI, Column Load Capacity of  9200 LBs, Tang Universal Hydraulic Cylinder

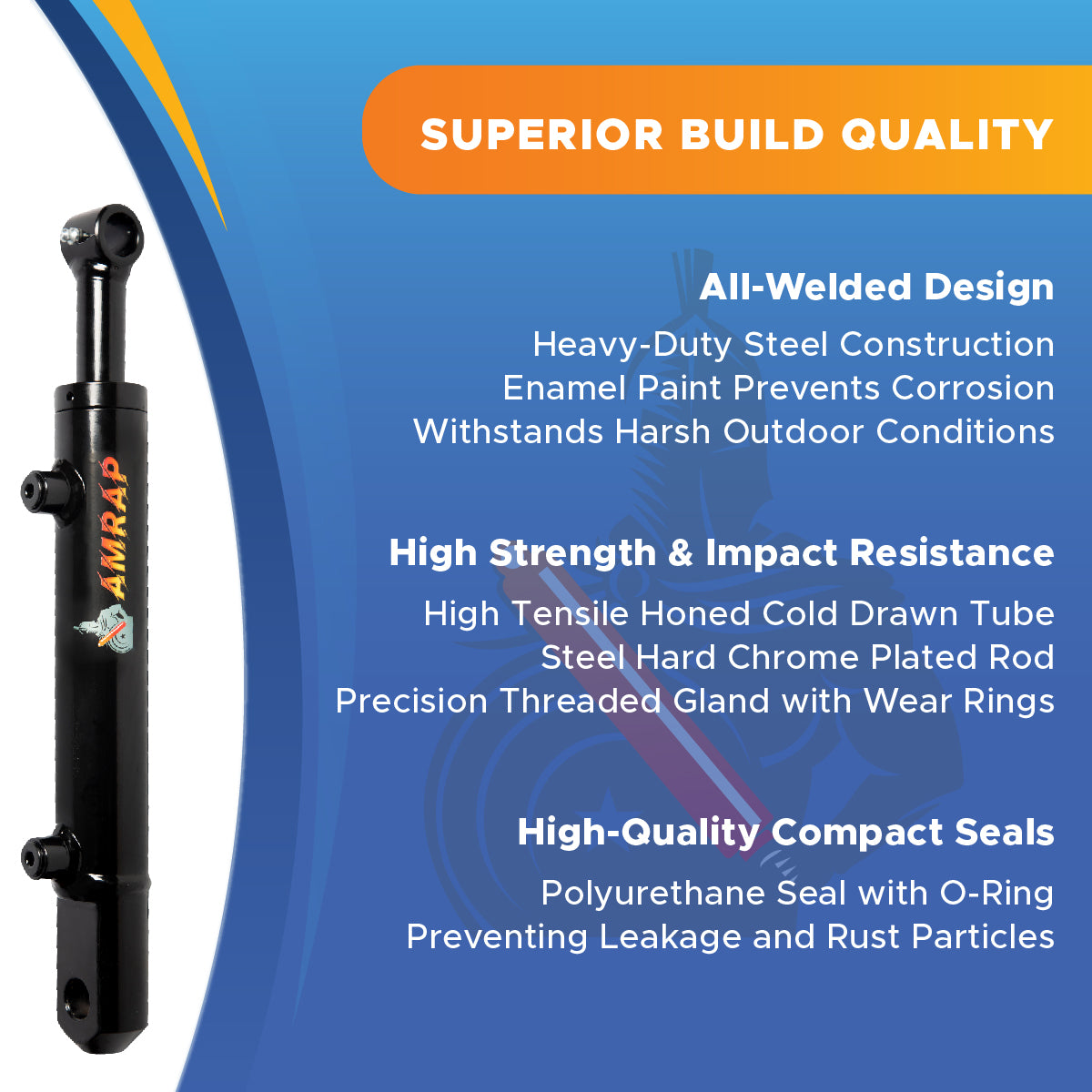

  • Superior Build Quality: All-welded design, Heavy-Duty Steel Construction, High Strength, and Impact Resistance to withstand Corrosion and Harsh Outdoor Conditions; High-Quality Compact Seals Prevent Leakage and Rust Particles.
  • The tangs are welded directly onto the cylinder tube and serve as mounting points for attaching the cylinder to the equipment. These tangs are strategically positioned for easy installation and secure attachment.
  • 2-Year Manufacturer’s Warranty: All AMRAP Hydraulics products come with a 2-year manufacturer's warranty*. That’s 24 months of peace of mind!
