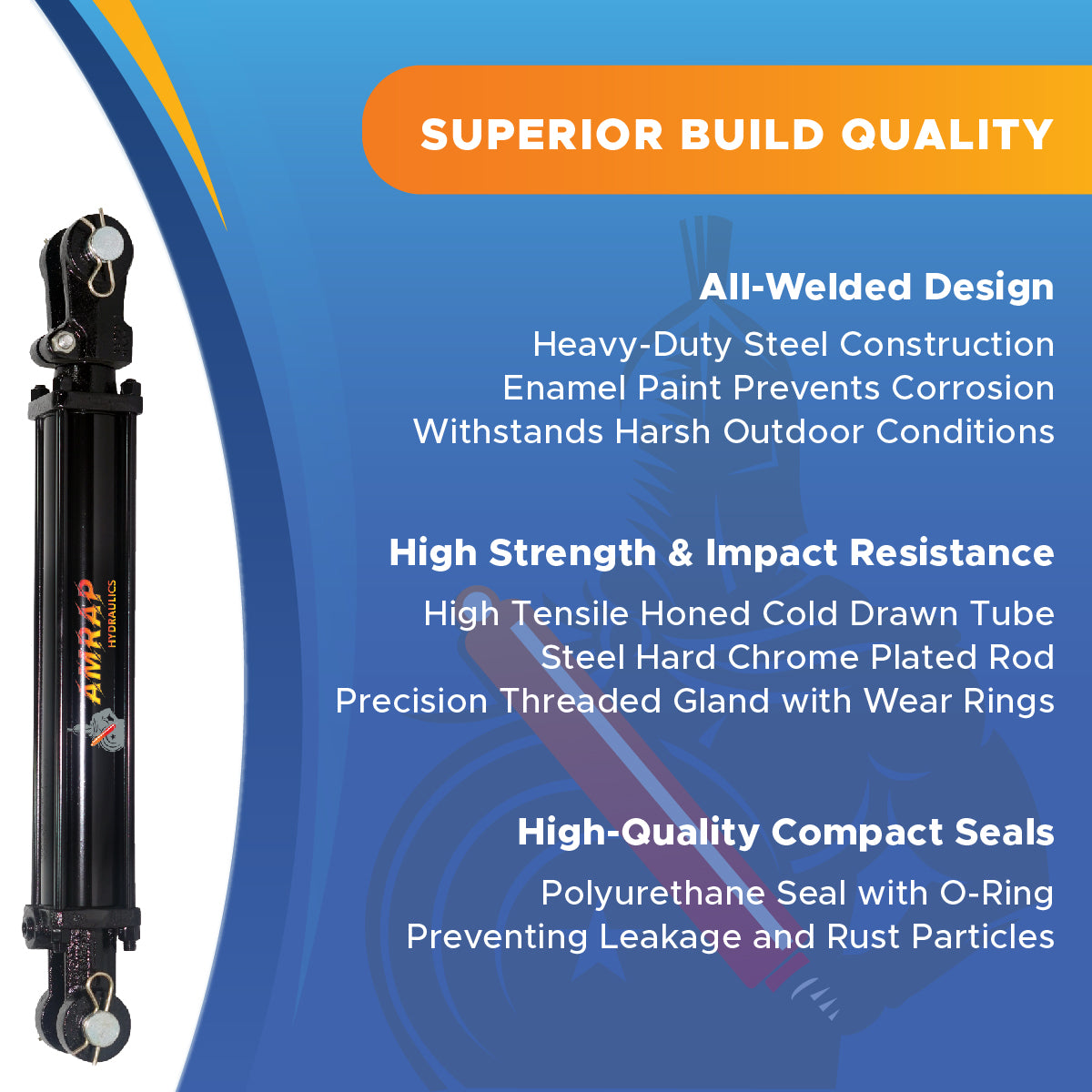

3x8A Hydraulic Cylinder - 3 Bore 8 ASAE Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

3x8A Hydraulic Cylinder - 3 Bore 8 ASAE Stroke Double Acting Tie Rod Hydraulic Cylinder 2500 PSI

$144.99
$144.99
Sale Sold out

Type : Tie-Rod Cylinder

SKU : 3008A-TR2

Collections : Hydraulic Cylinder, Tie-Rod Cylinder,

Availability : In Stock

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

View full details
  • Bore 3" (OD 3.38"), Stroke 8 ASAE" Rod:1.25, Retracted: 20.25" , Extended: 28.25" , Pin holes: 1"
  • Double Acting Hydraulic Cylinder with 1/2" NPT (Female Pipe), Rated Pressure of 2500 PSI, Column Load Capacity of 21200Lbs
  • Tie-rod end hydraulic cylinders are widely used in industrial machinery and equipment, including hydraulic presses, machine tools, agricultural machinery, construction equipment, material handling systems, and more. They are favored for their robustness, versatility, and ease of maintenance
  • Tie-rod end hydraulic cylinders are typically constructed with a cylindrical barrel, end caps, piston, piston rod, seals, and tie rods. The barrel houses the piston, which divides the cylinder into two chambers: the rod side (where the piston rod extends from) and the cap side (opposite the rod side). The piston rod extends through one end cap and is connected to the load being moved.
  • 2-Year Manufacturer’s Warranty: All AMRAP Hydraulics products come with a 2-year manufacturer's warranty*. That’s 24 months of peace of mind!
